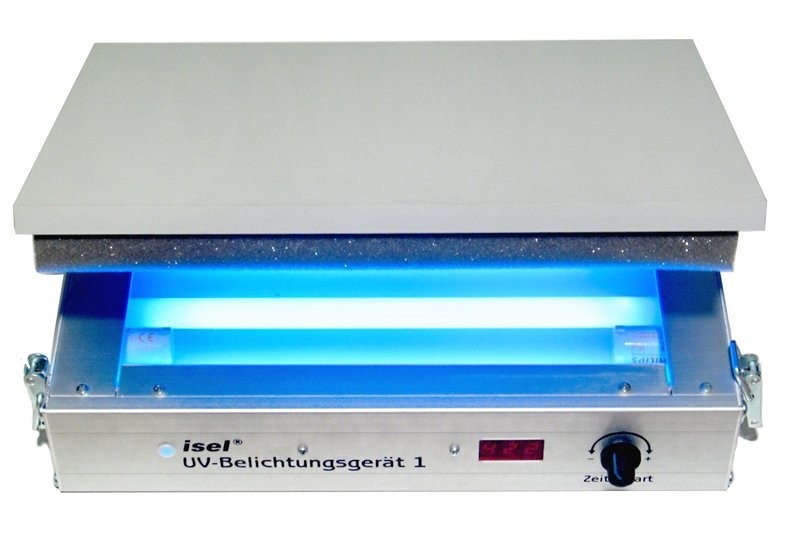

UV EXPOSURE UNIT WITH TIMER View larger

UV EXPOSURE UNIT WITH TIMER

VALOTUSLAITE

1 Item

In stock

370,39 €

UV illuminator for the exposure of printed circuit boards.

The home fabrication process for printed circuit boards in brief: print a conductor pattern on the film, expose the positively coated PCB and etch off the exposed copper. Finally, drill for through-hole components.

Features

  • for the final polishing of the conductors, cut out the copper, then cut the conductors to produce the final polished parts, then cut out the copper for the final polishing
  • adjustable electronic timer from 30 s to 10 min
  • high power UV lamps 220VAC / 4 x 15W
  • illumination level of special glass with good UV transmittance
  • lockable lid with sponge-like inner surface that presses the film evenly against the surface of the switch plate to be illuminated
  • exposure area: 160 x 250 mm

Note! Spare bulbs are also available.

Manufacturer
Manufacturer's modelProma 140 007
Measures317 x 225 x 90 mm
