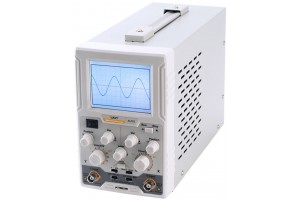

Owon AS201 OSCILLOSCOPE 20MHz 1CH

Features

1. Single channel and 20MHz bandwidth,100MS/s sample rate.
2. The simple control panel is similar to an analogue oscilloscope.
3. With 3.7" color LCD and compact case.
4. 130,000 wfms/s waveform capture rate, easily capturing exceptional and low probability events.
5. Fast learning for existing users of analogue oscilloscopes, retains the panel operation of an analoge oscilloscope easier to teach in the education field with no need to modify existing teaching method.

Description

1. This is a single channel digital storage oscilloscope.
2. Sampling rate is 100MS/s and bandwidth is 20MHz.
3. Application for electronic circuit debugging, circuit testing, design and manufacture, education and training, automobile maintenance and testing.

Functions

1. Stop button, ideal for waveform analysis.
2. Continuously adjust the sweep rate andvertical sensitivity.
3. Adjust the trigger level.
4. Trigger lock button: When the Lock button ispressed, the trigger level is automaticallymaintained at optimum value irrespective ofthe signal amplitude.
5. Norm/Auto/TV, three trigger mode options.
6. External trigger/x-axis input terminal (Lissajous figure experiment).
7. Select trigger source: Internal/Line/External.
8. Select coupling mode: AC/DC/Ground.

Specifications

• Plug Type: EU
• Max sample rate: 100MS/s
• Analog bandwidth: 20MHz
• Channel: single
• Item size: 288 x 195 x 117 mm
• Item weight: 1800g

Package includes

• 1 x Oscilloscope
• 1 x Power Cord
• 1 x Quick Guide
• 1 x Probe
• 1 x Probe Adjuster
