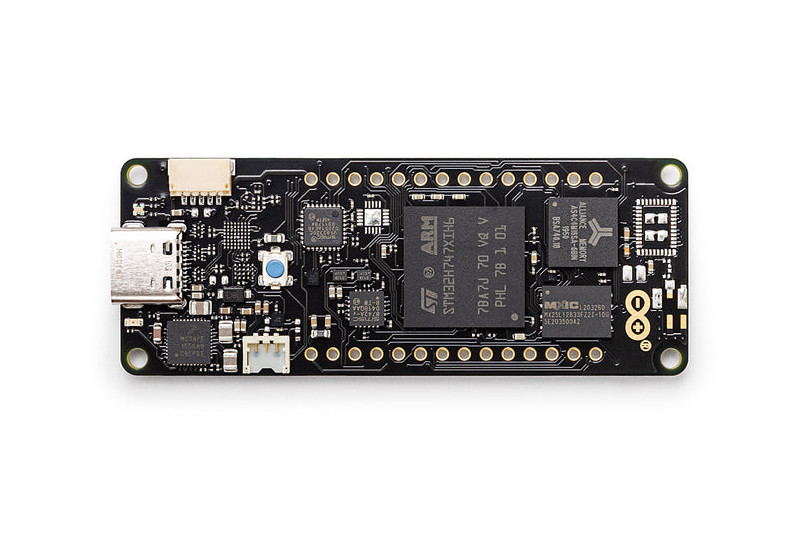

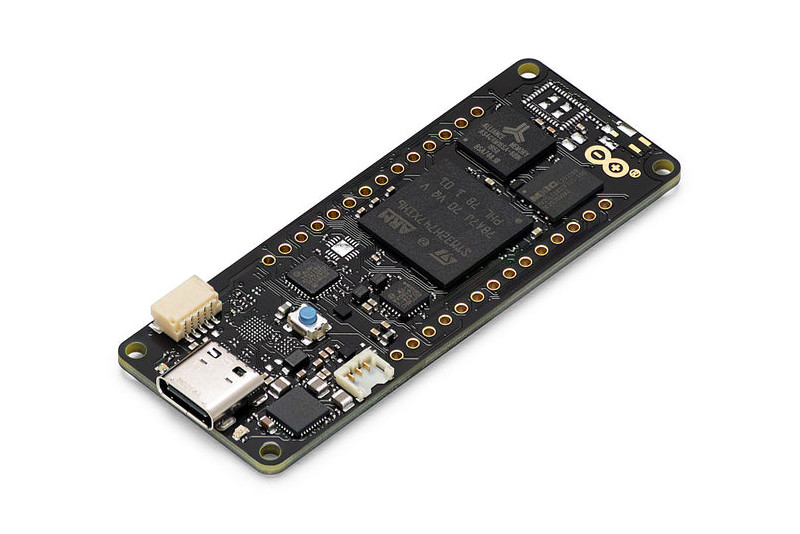

Arduino Portenta H7 Lite (ABX00045)

ARD ABX00045

19 kappaletta

Varastossa

Valmistajan kotisivu

91,20 €

Alkuperäinen Arduino® ABX00045 - Arduino Portenta H7 Lite on tehokas mikrokontrolleri, joka on suunniteltu ammattikäyttöön.

Portenta H7 Lite allows you to build your next smart project. Ever wanted an automated house? Or a smart garden? Well, now it’s easy with the Arduino IoT Cloud compatible boards. It means: you can connect devices, visualize data, control and share your projects from anywhere in the world. Whether you’re a beginner or a pro, we have a wide range of plans to make sure you get the features you need.


The Portenta H7 Lite is a cost-effective solution, designed for complex environments where radio communication is not suitable or possible. It is perfect for developers who want to leverage the computational power of the Portenta H7, without the need for video output or advanced security features.

The Portenta H7 Lite simultaneously runs high-level code and real-time tasks thanks to its two processors. For example, it can execute Arduino-compiled and MicroPython code at the same time, and have the two cores communicate with one another.

Key benefits include

  • Dual Core - Two best-in-class processors in one, running parallel tasks
  • AI on the edge - So powerful it can run AI state machines
  • Customization - The board is highly customizable in volumes
  • High-level programming language support (Micropython)


The Portenta H7 Lite offers twofold functionality: it can run either like any other embedded microcontroller board, or as the main processor of an embedded computer.
For example, use the Portenta Vision Shield to transform your H7 Lite into an industrial camera capable of performing real-time machine learning algorithms on live video feeds. As the H7 Lite can easily run processes created with TensorFlow™ Lite, you could have one of the cores computing a computer vision algorithm on the fly, while the other carries out low-level operations like controlling a motor or acting as a user interface.
Portenta is the go-to family when performance is key, and the H7 Lite is no exception. We can already envision it as part of a wide range of solutions, including:

  • High-end industrial machinery
  • Laboratory equipment
  • Computer vision
  • PLCs
  • Robotics controllers
  • Mission-critical devices
  • High-speed booting computation (ms)

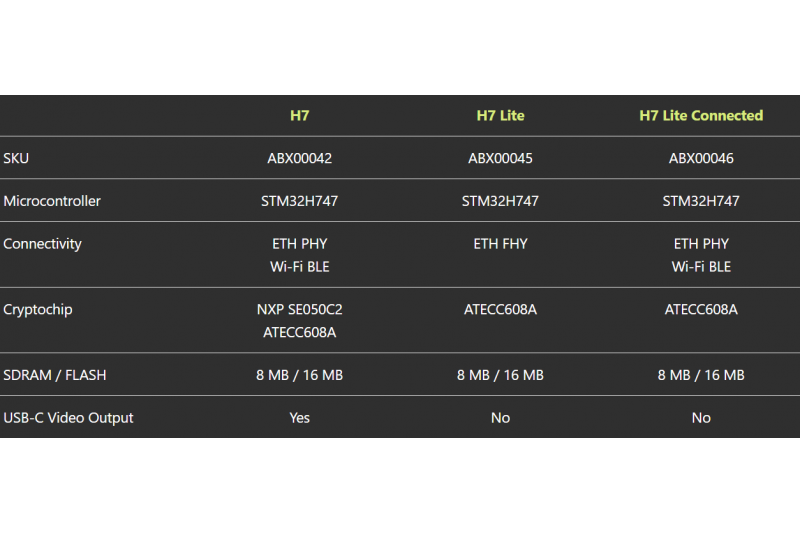

Tech specs

Microcontroller

STM32H747XI dual Cortex®-M7+M4 32bit low power Arm® MCU (datasheet)

Secure Element (default)

Microchip ATECC608

Board Power Supply (USB/VIN)

5V

Supported Battery

Li-Po Single Cell, 3.7V, 700mAh Minimum (integrated charger)

Circuit Operating Voltage

3.3V

Current Consumption

2.95 μA in Standby mode (Backup SRAM OFF, RTC/LSE ON)

Timers

22x timers and watchdogs

UART

4x ports (2 with flow control)

Ethernet PHY

10 / 100 Mbps (through expansion port only)

SD Card

Interface for SD Card connector (through expansion port only)

Operational Temperature

-40 °C to +85 °C

MKR Headers

Use any of the existing industrial MKR shields on it

High-density Connectors

Two 80 pin connectors will expose all of the board's peripherals to other devices

Camera Interface

8-bit, up to 80 MHz

ADC

3× ADCs with 16-bit max. resolution (up to 36 channels, up to 3.6 MSPS)

DAC

2× 12-bit DAC (1 MHz)

USB-C

Host / Device, High / Full Speed, Power delivery

Links

Video

EAN7630049202504
30 päivän alin hinta91,20 € sis.alv
Klikkaa tarkemmat tiedot
ValmistajaArduino
Valmistajan malliABX00045
ProsessoriARM Cortex-M7 (STM32)
