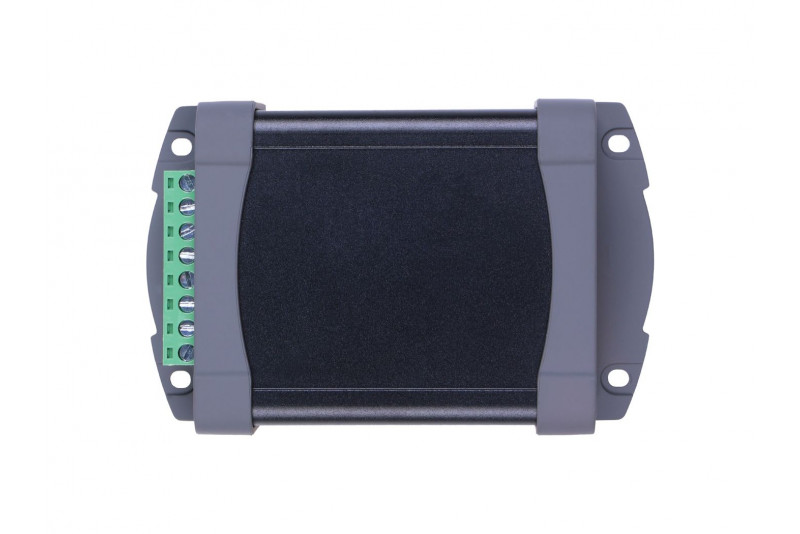

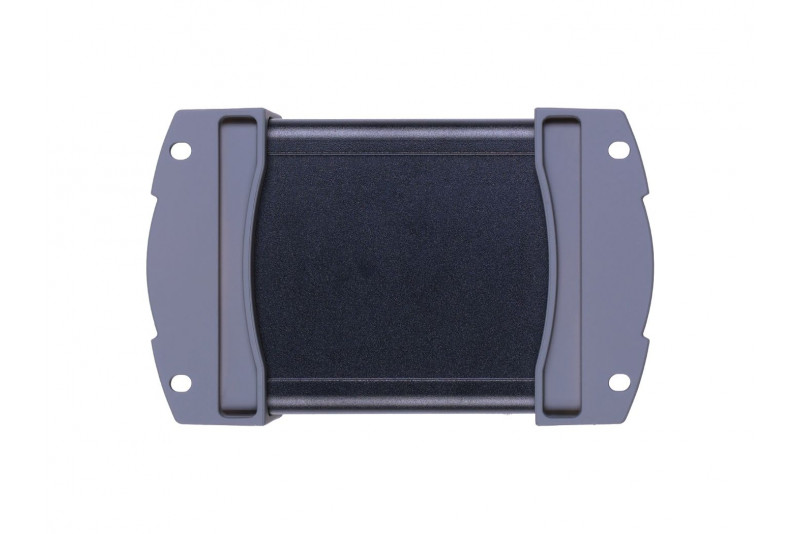

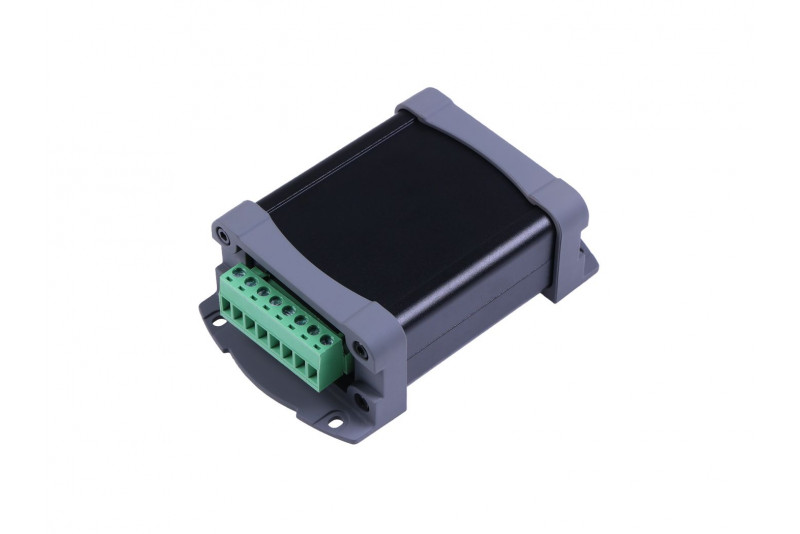

Wio ESP32 CAN Dev Kit

SEEED 114992985

3 kappaletta

Varastossa

Huom: Viimeinen tuote varastossa!

Valmistajan kotisivu

45,60 €

-20%

57,00 €

Seeed Studio 102991776 - The CANBed Elite Atmega32U4 - MCP2515 and MCP2551 CAN bus chips, Type-C, LED Indicators, External Headers, Sleek Aluminum Housing, Arduino Support

PRODUCT DETAILS

The CANBed Elite Atmega32U4 is a CAN Bus development board based on the Atmega32U4 microcontroller, MCP2515, and MCP2551 chips. It features sleek aluminum housings, providing durability and protection for your projects, and is compatible with the Arduino IDE, designed for profession and hobbyists.

There is a USB Type-C connector, LED indicators, and headers for connecting external devices on the board and it is also compatible with the Arduino IDE, all of which make this development board easy to use and perfect for a wide range of applications, like Automotive diagnostics and monitoring.

This board is well-suitable for your CAN Bus project. With its certified CE and FCC, you can experience its durability, versatility, and advanced features.

The CANBed Elite Atmega32U4 is a professional and versatile CAN Bus development board based on the Atmega32U4 microcontroller. It also comes with a sleek aluminum housing, a Type-C connector, LED indicators and external headers. And it is compatible with the Arduino IDE.

Features

  • Atmega32U4-based Development Board: Built with Atmega32U4 microcontroller, and Arduino Leonardo bootloader, support Arduino IDE
  • CAN Bus Connection: Equip MCP2515 CAN Bus controller and MCP2551 CAN Bus transceiver, indicating CAN Bus status with LED indicators
  • Well Durability and Protection: Design with sleek aluminum housing
  • Onboard USB Type-C connector for easy programming and power supply
  • Onboard headers for connecting external devices

Application

  • Automotive diagnostics and monitoring
  • Industrial automation
  • Robotics
  • Home automation
  • Building automation

Specification

Parameters

Details

Microcontroller

Atmega32U4 with Arduino Leonardo bootloader

Clock speed

16 MHz

Flash memory

32 KB

SRAM

2.5 KB

EEPROM

1 KB

CAN-BUS operating voltage

9-28V

USB Type-C operating voltage

5V

Dimensions

70x66x30mm

Links

Klikkaa tarkemmat tiedot
ValmistajaSeeed Studio
Valmistajan malli102991776
Mitat70 x 66 x 30mm
Kellotaajuus16MHz
Muisti RAM2.5KB
Muisti EEPROM1KB
Muisti FLASH32KB
