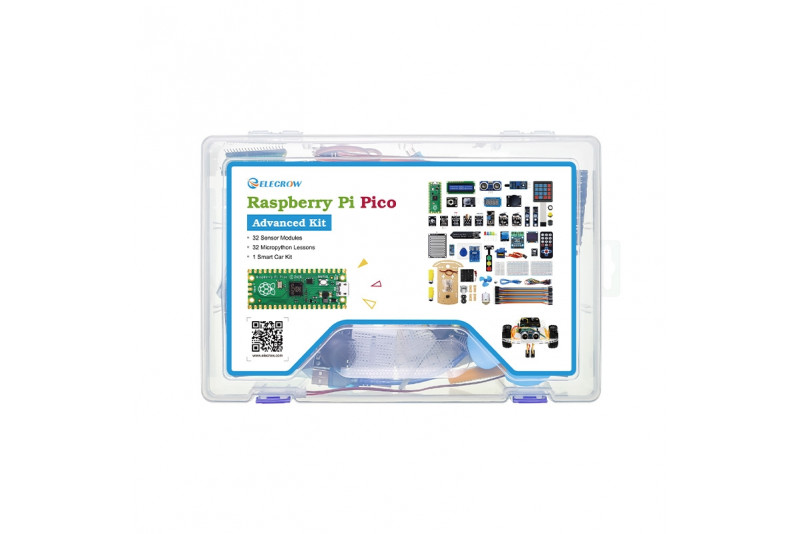

Elecrow Pico SARJA, 32 MODUULIA +PICO

This Raspberry Pi Pico advanced kit is designed for people who already have some electronics knowledge and programming skills and are interested in the Raspberry Pi. If you want to continue to strengthen your thinking, hands-on ability， and innovation ability, the Raspberry Pi pico advanced kit will take you to create different scenarios and explore more applications.

The Raspberry Pi Pico Advanced Kit includes a Pi Pico based on the official RP2040 chip, 32 sensor modules, 1 smart car kit, and 32 Raspberry Pi Pico projects. With this kit, you can complete several interesting and practical projects.

In the process, the learners' thinking ability and creativity are continuously stimulated. In short, whether you are a student, teacher or hardware enthusiast, let's follow the smart car into a new stage of programming!

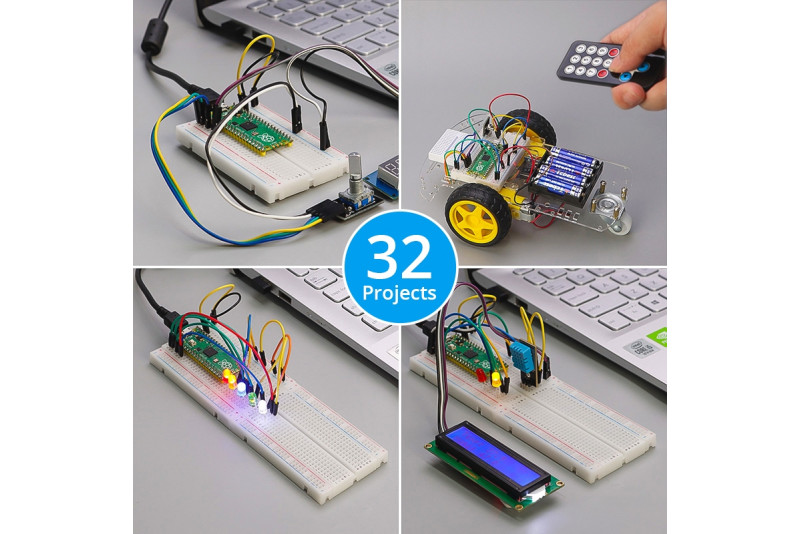

Projects built with this kit

• RGB Colorful Light
• Electronic Clock
• Colorful Flowing Light
• Billboard
• Plant Doctor
• Alarm of Fire
• Obstacle Avoidance
• Car Traffic Light

Feature

• Suitable for all users, from beginners to advanced programmers.
• 32 detailed lessons to lead your experiment
• 32 kinds of sensor modules and the smart cart can also be customized for interesting functions.
• Raspberry Pi Pico is a lightweight, compact, high-performance microcontroller multifunction board using a dual-core ARM Cortex-M0+ processor
• More powerful functions

Specification of the Raspberry Pi Pico

• 21 mm × 51 mm form factor
• RP2040 microcontroller chip designed by Raspberry Pi in the UK
• Dual-core Arm Cortex-M0+ processor, flexible clock running up to 133 MHz
• 264KB on-chip SRAM
• 2MB on-board QSPI Flash
• 26 multifunction GPIO pins, including 3 analog inputs
• 2 × UART, 2 × SPI controllers, 2 × I2C controllers, 16 × PWM channels
• 1 × USB 1.1 controller and PHY, with host and device support
• 8 × Programmable I/O (PIO) state machines for custom peripheral support
• Supported input power 1.8–5.5V DC
• Operating temperature -20°C to +85°C
• Castellated module allows soldering directly to carrier boards
• Support drag-and-drop programming using mass storage over USB(https://make.playpiper.com/)
• Low-power sleep and dormant modes
• Accurate on-chip clock
• Temperature sensor
• Accelerated integer and floating-point libraries on-chip

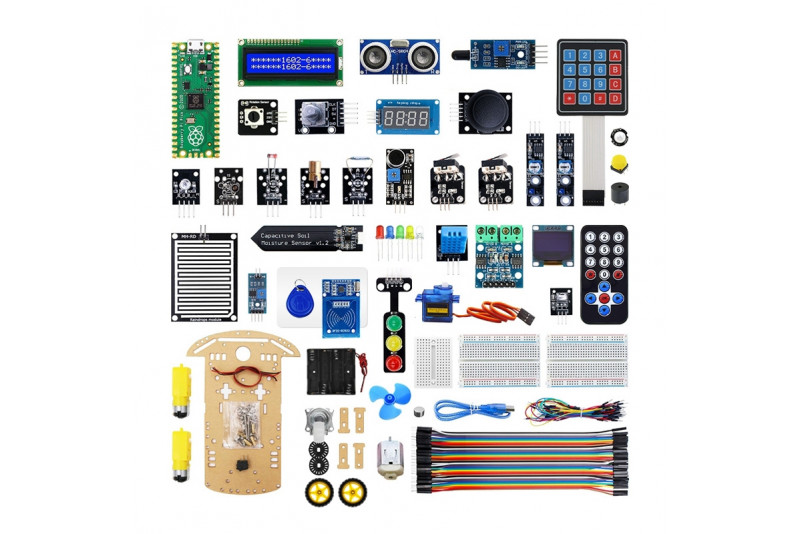

Package list

• 1x Raspberry Pi Pico with Pin headers
• 2x 400 holes Solerless Breadboard
• 10x Colorful 5MM LEDS:1pcs each in green,red,blue,yellow and white
• 1x RGB module
• 1xButton
• 1x Sound Sensor
• 1x Mini PIR motion sensor
• 1x Photoresistor Module
• 1x Laser Transmitter
• 1x Passive buzzer
• 1x Vibration Sensor
• 1x Mini magnetic spring module
• 1x Soil moisture sensor
• 1x Rotary Potentiometer
• 1x DC motor with male Dupont Wire + fan blade x 1
• 1x 9G servo
• 1x Dual-axis XY Joystick Module
• 1x RC522 RFID Module
• 1x 4 Bits Digital LED Display Module
• 1x Traffic Light Display Module
• 1x Rotary Encoder Module
• 1x 1602 LCD Display Module（Blue）
• 1x Temperature & Humidity sensor
• 1x Raindrops Module
• 1x Flame Sensor
• 1x OLED Module
• 1x Membrane Switch Keyboard
• 1x Smart car Kit
• 2x Crash Sensor
• 2x Tracking sensor
• 1x Ultrasonic Sensor
• 1x Infrared remote control
• 1x Infrared receiver module
• 1x Micro USB Cable（30cm）
• 1x 170 holes Solerless Breadboard
• 1x 65 Jumper Wire
• 1x 20CM Male to Female Dupont Wire
• 1x Clear Case
• 2x M2.5*30mm Copper Pillar
• 10x Phillips Pan Head Screw
• 10x M2.5 Nickel Hex nuts
• 1x 2 INCH dual-purpose screwdriver
• 1x Magnet(Diameter:8mm Thickness:5mm)
• 1x DC stepper motor driver board

Manual&Lessons External Link

• User Tutorial
• Get Started with MicroPython on Raspberry Pi Pico
• Map and Assembly Manual
