Uusi RASPBERRY CM4, 8GB Ram, 0GB eMMC Näytä suurempana

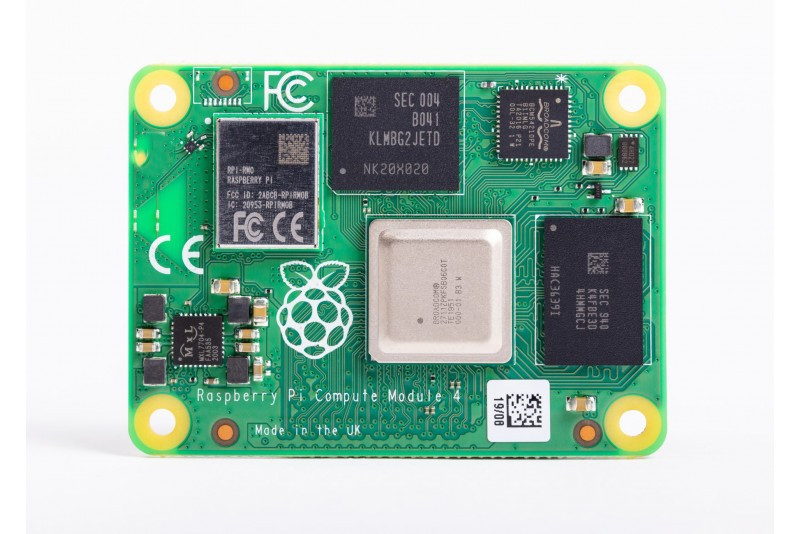

RASPBERRY CM4, 8GB Ram, 0GB eMMC

RPI CM4008000

1 kappale

Varastossa

Valmistajan kotisivu

97,55 €

RaspberryPi CM4008000 = Compute module 4 with 8GB ram, 0GB eMMC

Description

Compute Module 4 (CM4) brings the power of Raspberry Pi 4 to the popular Compute Module family.

Specs

  • Form factor: 55 mm × 40 mm
  • Processor: Broadcom BCM2711 quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
  • Memory: 1GB, 2GB, 4GB or 8GB LPDDR4 (depending on variant)
  • Connectivity:
    • Optional wireless LAN, 2.4GHz and 5.0GHz IEEE 802.11b/g/n/ac wireless, Bluetooth 5.0, BLE with onboard and external antenna options
    • Onboard Gigabit Ethernet PHY supporting IEEE1588
    • 1 × USB 2.0 interface
    • PCIe Gen 2 x1 interface
    • 28 GPIO signals
    • SD card interface for SD card or external eMMC (for use only with Compute Module 4 variants without eMMC)
  • Video:
    • Dual HDMI interface (up to 4Kp60 supported)
    • 2-lane MIPI DSI display interface
    • 2-lane MIPI CSI camera interface
    • 4-lane MIPI DSI display interface
    • 4-lane MIPI CSI camera interface
  • Multimedia: H.265 (4Kp60 decode); H.264 (1080p60 decode, 1080p30 encode); OpenGL ES 3.0 graphics
  • Input power: 5V DC
  • Operating temperature: 0 to +80°C

Packing list

  • 1pcs CM4008000 = Compute module 4 without wireless, 8GB ram, 0GB eMMC

Video

Klikkaa tarkemmat tiedot
ValmistajaRaspberry Pi Foundation
Valmistajan malliCM4008000
