Raspberry Pi Zero

Valmistajat

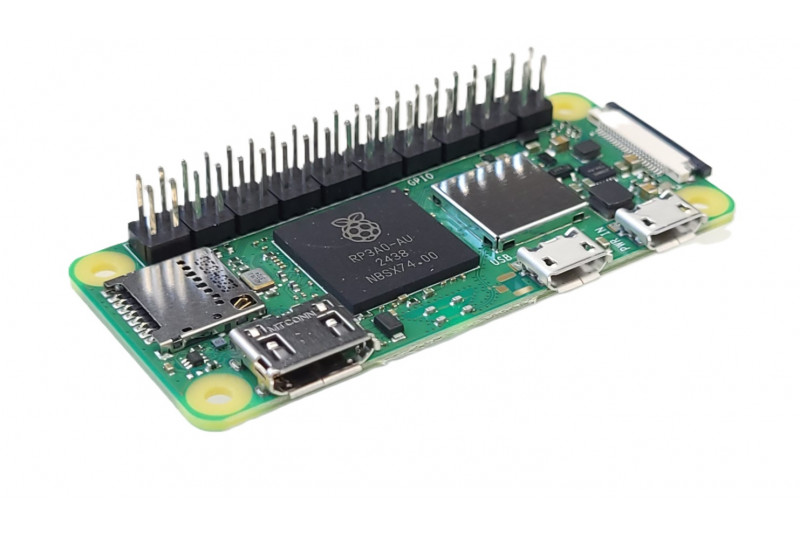

Uusi RASPBERRY PI ZERO 2 WH with pin header Näytä suurempana

RASPBERRY PI ZERO 2 WH PIIKKIRIMALLA

RPI-ZERO-2WH

4 kappaletta

Varastossa

Valmistajan kotisivu

33,50 €

Uusi, tehokkaampi versio Raspberry Pi Zero:sta nyt myös piikkirimalla. RP3A0 SoC lastu tuo neliytimisen A53 coren mukanaan puolisen gigaa muistia höystettynä WiFi ja BT4.2 langattomilla yhteyksillä. Yhteensopiva aiempien Zero korttien kanssa.

At the heart of Raspberry Pi Zero 2 W is RP3A0, a custom-built system-in-package designed by Raspberry Pi in the UK. With a quad-core 64-bit ARM Cortex-A53 processor clocked at 1GHz and 512MB of SDRAM, Zero 2 is up to five times as fast as the original Raspberry Pi Zero. Processing power is comparable to Raspberry Pi 3.

Wireless LAN is built in to a shielded enclosure with improved RF compliance, giving you more flexibility when designing with Raspberry Pi Zero 2 W.

It has the same footprint and 40 pin GPIO arrangement as the Zero and Zero W, so it should be compatible with most existing add-ons.

Raspberry Pi Zero 2 W is footprint-compatible with earlier members of the Zero family and in the same tiny 65mm × 30mm form factor.

Specifications

  • 1GHz quad-core 64-bit Arm Cortex-A53 CPU
  • 512MB SDRAM
  • 2.4GHz 802.11 b/g/n wireless LAN
  • Bluetooth 4.2, Bluetooth Low Energy (BLE), onboard antenna
  • Mini HDMI port and micro USB On-The-Go (OTG) port
  • microSD card slot
  • CSI-2 camera connector
  • HAT-compatible 40-pin header footprint (unpopulated)
  • H.264, MPEG-4 decode (1080p30); H.264 encode (1080p30)
  • OpenGL ES 1.1, 2.0 graphics
  • Micro USB power
  • Composite video and reset pins via solder test points
  • 65mm x 30mm

Links

Notes

Please be aware that the LED on your Zero 2 won't light up if there's no SD card or if there's a problem with the image. SD cards that work in other models of Pi are not guaranteed to work in your Zero 2, so try flashing a fresh image if you're having problems! These instructions from Raspberry Pi will guide you on how to flash Raspberry Pi OS to your SD card.
