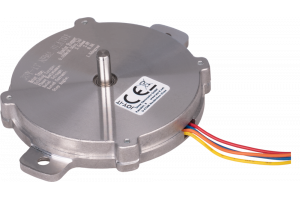

ASKELMOOTTORI NEMA 2,8V 0,8A 1,8ast

These flat stepper motors have especially been developed for the feeders in semiconductor production.

These stepper motors can be used very well in other applications with limited assembly space.

Specifications

• Shaft dimensions: Ø 4 x 10 mm
• Interface connections: 4 pin JST cable connector
• Cable length: 70 mm
• Special characteristics: Ultraslim Design
• Holding torque: 60 mNm
• Rated voltage: 2.8 V
• Rated current: 0.8 A
• Step angle: 1.8° ±5 %
• No. of phases: 2
• Phase resistance: 3.5 Ω
• Phase inductivity: 1.8 mH
• Isolation resistance: 100 MΩ min. @500 V DC
• Isolation class: B (130 °C)
• Rotational inertia: 15 g·cm²
• Detent torque: 8 mNm
• Permitted operating temperature: -10 °C to 50 °C
• Dimensions: Ø 60 x 9,6 mm
• Weight: 75 g
• Items Shipped: 1x NEMA-FLAT01 stepper motor
• EAN: 4250236821641
