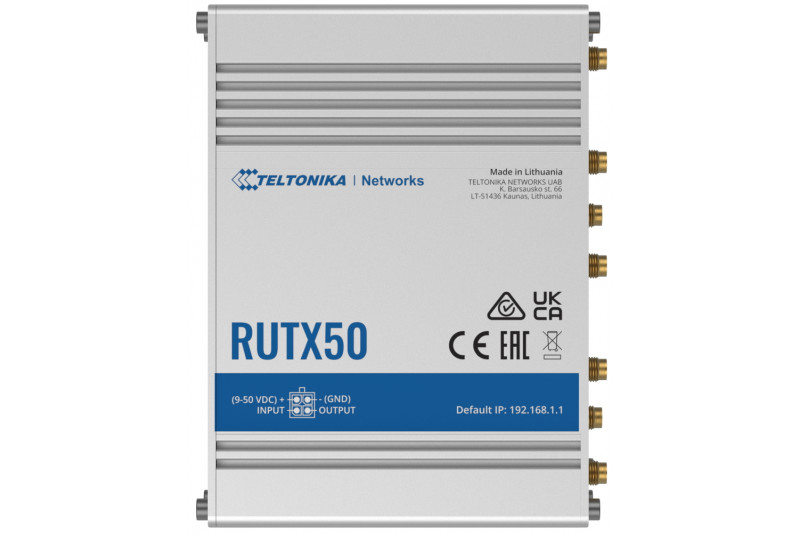

Teltonika RUTX50 5G Wifi 5 DUAL-SIM REITITIN

Description

• RUTX50 is your future-proof, multi-network industrial router, offering 5G mobile communication for high-speed and data-heavy applications.
• 5G dual SIM cellular communication combined with 5 Gigabit Ethernet ports and dual-band Wi-Fi enables reliable ultra-low latency data transfer.
• The power of 5G technology, combined with a wide range of interfaces and industrial hardware features, ensures adaptability for future upgrades and expansions.
• RUTX50 comes with the RutOS, which provides advanced security features and specialized industrial protocols for a wide range of professional application scenarios, and is compatible with our Remote Management System (RMS), for optimized remote management and monitoring capabilities of large fleets of devices.

Key features

• 5G - Ultra-high cellular speeds of up to 3.3 Gbps
• DUAL SIM - Uninterrupted communication with auto-failover
• SA & NSA - Supports both architectures to leverage the 5G infrastructure
• WIFI 5 - Dual-band data throughput for up to 150 clients simultaneously
• ULTRA-LOW LATENCY - Single-digit latency for mission-critical applications
• FUTURE-PROOFING - Backward compatible with 4G (LTE CAT 20) and 3G network technologies

Hardware

• Mobile 5G: Sub-6Ghz SA/NSA 2.1/3.3Gbps DL (4x4 MIMO), 900/600 Mbps UL (2x2)
• Mobile 4G: LTE Cat 20 2.0Gbps DL, 200Mbps UL; 3G – 42 Mbps DL, 5.76Mbps UL
• CPU: Quad-core ARM Cortex A7, 717 MHz
• Flash storage: 256 MB
• RAM: 256 MB
• Powering options: 4-pin power socket, 9-50 VDC
• SIM: 2 x SIM slot (Mini SIM – 2FF), 1.8V/3V

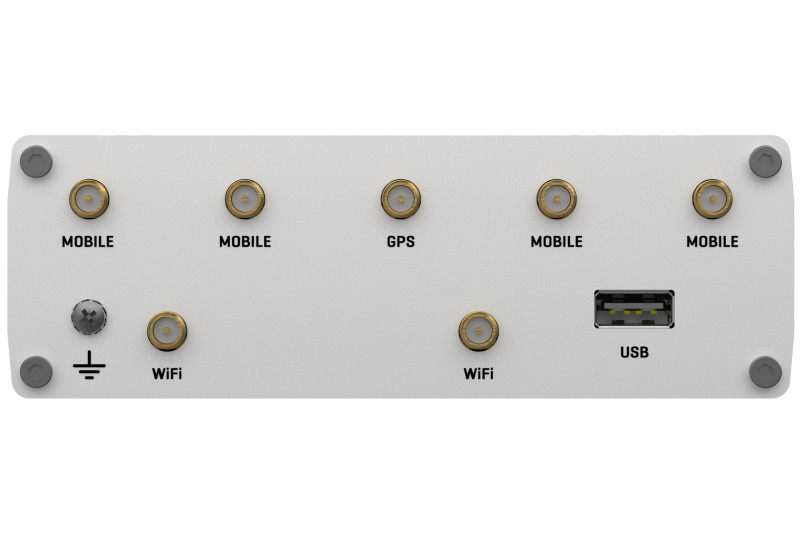

• Antenna connectors: 4 x SMA for Mobile, 2 x RP-SMA for WiFi, 1 x SMA for GNSS

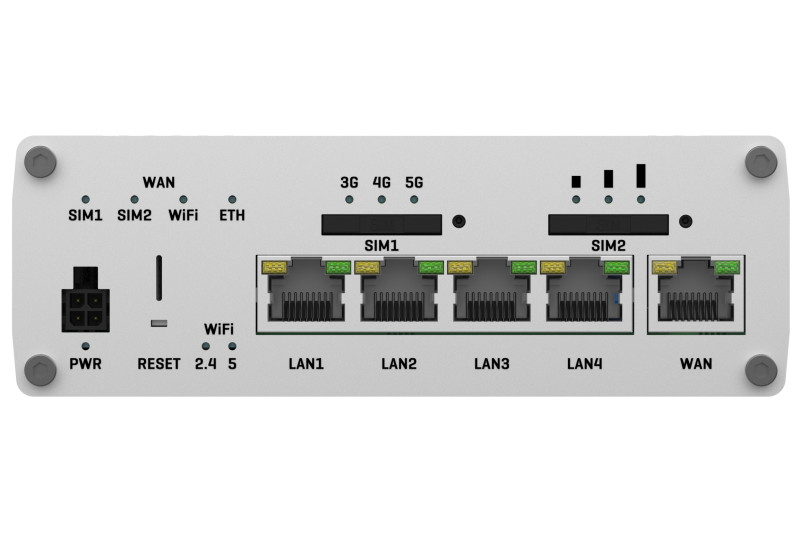

• Ethernet: 5 x 10/100/1000 Ethernet ports: 1 x WAN (configurable as LAN), 4 x LAN
• WiFi: 802.11b/g/n/ac Wave 2 (WiFi 5) with data transmission rates of up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA)
• Wireless mesh/roaming: Wireless mesh (802.11s), fast roaming (802.11r)
• GNSS: GPS, GLONASS, BeiDou, Galileo, QZSS
• Inputs/Outputs: On 4-pin socket: 1 x Digital input, 1 x Digital open collector output
• Other: 1 x USB host, 1 x Grounding screw
• Status LEDs: 3 x connection status LEDs, 3 x connection strength LEDs, 10 x Ethernet port status LEDs, 4 x WAN status LEDs, 1x Power LED, 2 x 2.4G and 5G WiFi LEDs
• Operating temperature -40 °C to 75 °C
• Housing Aluminum housing, DIN rail (can be mounted on two sides), flat surface placement
• Dimensions (W x H x D) 132 x 44.2 x 95.1 mm
• Weight 533 g

Software

• Operating system: RutOS (OpenWrt based Linux OS)
• Mobile features: Multiple PDN, Auto APN, Band lock, SIM switch, Operator black/white list, Data/SMS limits
• Network features: Routing, Failover, Firewall, DHCP, DDNS, Load Balancing, VoIP passthrough, Connection monitoring
• Monitoring and Management: WEB UI, CLI, SSH, CALL, SMS, TR-069, SNMP, JSON-RPC, MQTT, MODBUS, RMS
• VPN and tunneling: OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, WireGuard, ZeroTier
• Cloud solutions: RMS, FOTA, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx
• Hotspot: External/Internal Radius, SMS OTP, MAC authentication, Walled Garden
• GNSS: NMEA forwarding, AVL, Geofencing

Standard package contains

• RUTX50 Router
• 18 W PSU
• 4 x Mobile antennas (swivel, SMA male)
• 2 x WiFi antennas (magnetic mount, RP-SMA male, 1.5 m cable)
• 1 x GNSS antenna (adhesive, SMA male, 3 m cable)
• Ethernet cable (1.5 m)
• SIM Adapter kit
• QSG (Quick Start Guide)
• Packaging box
