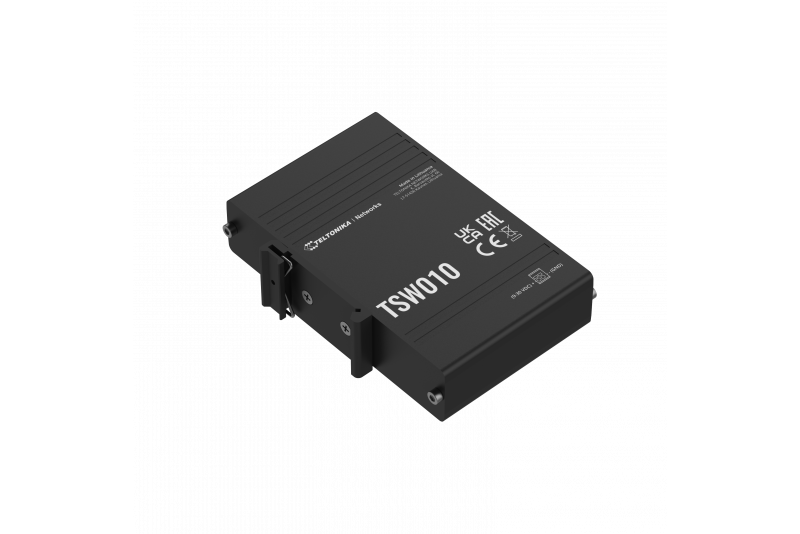

Teltonika TSW010 1+4x10/100MB(Poe) ETHERNET KYTKIN

Description

• TSW010 offers the most affordable way to extend network connectivity to multiple Ethernet devices.
• Five 10/100 Ethernet ports ensure stable and reliable connectivity, sufficient for most industrial applications where high throughput is not required.
• Wide range of supported power supply voltages (9-30 V) and rugged design make it suitable for professional solutions.
• Compact size and integrated DIN rail bracket enable easy installation across different industrial environments.

Key features

• PLUG AND PLAY - No additional configuration needed
• MOUNTING - Integrated DIN rail bracket and surface mounting options
• INDUSTRIAL DESIGN - Anodized aluminum housing and panels
• ETHERNET - 5 x Ethernet ports with speeds of up to 100 Mbp

Specifications

HARDWARE

• Power supply: 2-pin industrial DC power socket, 9 - 30 VDC
• Power consumption: Idle: 0.3 W / Max: 0.9 W
• Status LEDs: 1 x Power LED, 10 x LAN status LEDs
• Ethernet: 5 x RJ45 ports, 10/100 Mbps
• Ingress protection rating: IP30
• Operating temperature: -40 °C to 75 °C Housing Anodized aluminum housing and panels
• Dimensions: 113.1 x 27.4 x 80.5 mm Weight 146.5 g
• Installation: Integrated DIN rail bracket or wall mounting (additional kit needed), flat surface placement

PERFORMANCE SPECIFICATIONS

• Bandwidth (Non-blocking): 1 Gbps
• MAC address table size: 2K entries
• Jumbo frame support: 2048 bytes

POWER

• Connector: 4-pin industrial DC power socket, 2-pin industrial DC power socket
• Input voltage range: 9-30 VDC
• PoE (passive): Passive PoE over spare pairs. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Passive PoE input on port No. 1
• Power consumption: Idle: 0.3 W / Max: 0.9 W

Standard package contains

• TSW010
• QSG (Quick Start Guide)
• Packaging box
