Seeed Studio 101020172 - Grove - Line finder v1.1 - most automated robotic projects start from a line-following robot.
Most automated robotic projects start from a line-following robot, Grove - Line finder v1.1 is designed to achieve this task easily and quickly.
Grove-Line finder is designed for a line-following robot. It has an IR emitting LED and an IR-sensitive phototransistor. It can output a digital signal to a microcontroller so that the robot can follow a black line on a white background or vice versa.

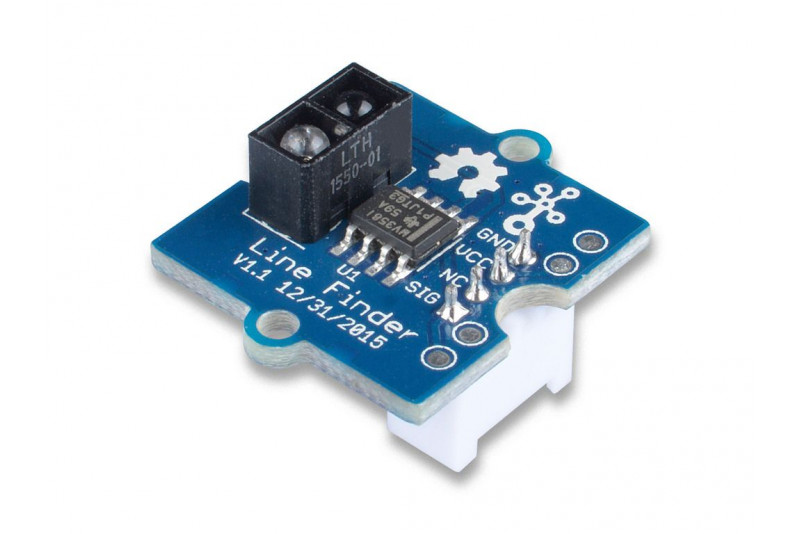

Those eye-like sensors on the board are actually IR emitting LED and sensitive phototransistors. When the phototransistor detects the reflected infrared light from the IR emitting LED, it will output a digital signal, which changes from HIGH to LOW.
Power supply | 5V DC |
Digital output mode | TTL (High when black is detected, Low when white is detected) |
Connector | 4-pin Buckled Grove interface |
Comparator | LMV358 |
Photo reflective diode | RS-06WD |
Dimension | 20mm*20mm |
Dimensions | 24.2mm x20mm x10.8mm |
Weight | G.W 8g |
Battery | Exclude |
Power supply | 5V DC |
Digital output mode | TTL (High when black is detected, Low when white is detected) |
Connector | 4 pin Buckled Grove interface |
Comparator | MV358 |
Photo reflective diode | RS-06WD |
Grove - Line Finder v1.1 | 1 |
Klikkaa tarkemmat tiedot | |
Valmistaja | Seeed Studio |
Valmistajan malli | 101020172 |
