ARDUINO MODULINO BUZZER MODULE

Modulino® Buzzer module adds sound feedback to your project – easily create beeps, alerts, and melodies with minimal code!

The Arduino Modulino collection includes a set of plug-and-play smart components that turn complex electronics into simple and interactive projects – with minimal code and maximum creativity.

Discover a new generation of ready-to-use sensors and actuators that simplify any build. The Modulino series is designed for hobbyists, educators, and professionals, and they connect easily via Qwiic cables. Thanks to daisy-chaining, they operate as a unified system.

Both beginners and experienced developers can implement advanced features using preconfigured Arduino Cloud templates and the Modulino library (supporting both Arduino language and MicroPython).

The unified design of the modules allows them to be swapped and reused across various new ideas. The pin header interface provides advanced users the option for further customization.

Compatible with Arduino Nano, Nano 33 IoT, Nano 33 BLE, Nano 33 BLE Sense, Nano Every, Nano RP2040 Connect, Nano ESP32, Nano Matter, and UNO R4 WiFi boards.

Main benefits

• Plug-and-play connectivity: Connect Modulino® Buzzer modules quickly to Arduino UNO R4 WiFi or Nano boards using the Nano Connector Carrier – fast and reliable.
• Preassembled and compact modules: Designed to support demanding edge-IoT projects.
• Easy scalability: Add new sound capabilities without redesigning hardware.
• Seamless Arduino ecosystem integration: Leverage Arduino software, cloud tools, and community support to speed up development.

Specifications:

• Board name: Modulino® Buzzer
• Product code (SKU): ABX00108
• Piezo buzzer: PKLCS1212E4001-R1, controlled via STM32C011F4 microcontroller over I2C
• I2C address: 0x3C (software configurable)
• Connector: Qwiic
• Input voltage: 3.3 V via Qwiic or pin header
• Pins: 3.3 V
• Dimensions: 25.36 mm × 41 mm
• Weight: 4.2 g

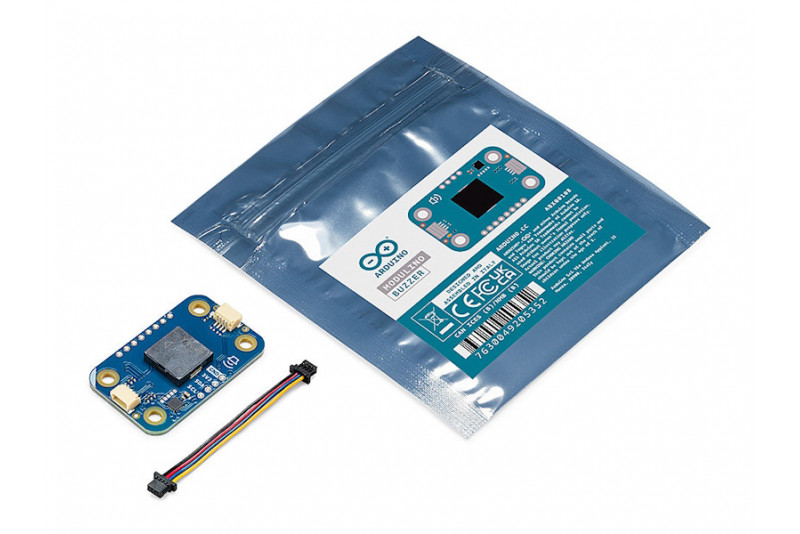

Package includes:

• Modulino® Buzzer module
• Qwiic cable (5 cm)

Link:

Datasheet (PDF)
