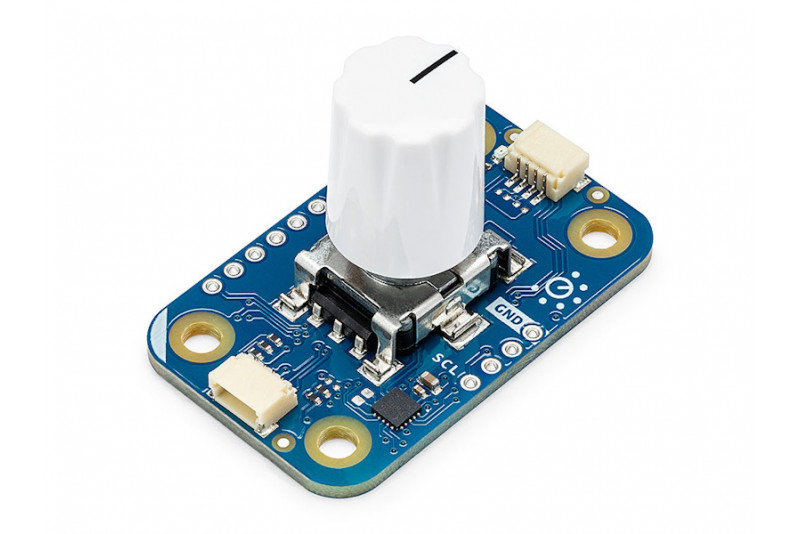

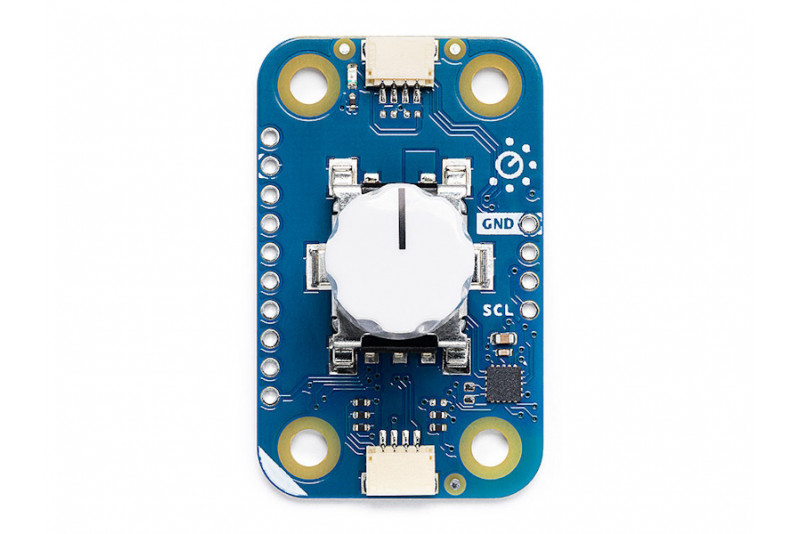

ARDUINO MODULINO KNOB

Modulino® Knob adds precise and intuitive control to your projects – ideal for creating dials, menus, and other interactive user interfaces!

The Arduino Modulino® collection includes a range of smart, plug‑and‑play components that turn complex electronics into simple, interactive projects – with minimal code and maximum creativity.

Explore a new generation of ready-to-use sensors and actuators that simplify any setup. The Modulino series is designed for hobbyists, educators, and professionals, and connects easily with Qwiic cables. Thanks to daisy-chaining, all modules function as a unified system.

Both beginners and experienced developers can implement advanced features using preconfigured Arduino Cloud templates and the Modulino library (supporting both Arduino and MicroPython).

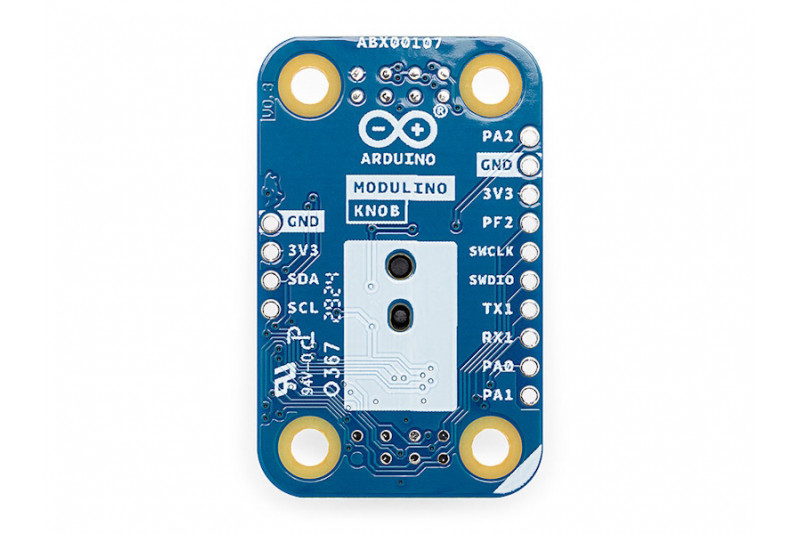

The modules’ uniform design makes them easy to swap and reuse in various projects. The pin header interface enables deeper customization for advanced users.

Compatible with Arduino Nano, Nano 33 IoT, Nano 33 BLE, Nano 33 BLE Sense, Nano Every, Nano RP2040 Connect, Nano ESP32, Nano Matter, and UNO R4 WiFi boards.

Main Benefits

• Plug‑and‑play connectivity: Connect Modulino® modules to Nano or UNO R4 WiFi boards via the Nano Connector Carrier – easily and reliably.
• Precise and preassembled control module: Ideal for UI rotary controls and parameter adjustments.
• Effortless expandability: Add control features without redesigning hardware.
• Integration with the Arduino ecosystem: Take advantage of the Arduino IDE, cloud tools, and community support to speed up development.

Features:

• Board Name: Modulino® Knob
• Product Code (SKU): ABX00099
• Combined rotary encoder and push button: Enables versatile input via I2C (STM32C011 chip)
• I2C Address: 0x3E (programmable)
• Connector: Qwiic (3.3 V), optional pin header
• Operating Voltage: 3.3 V
• Dimensions: 25.36 mm × 41 mm
• Weight: 5.0 g

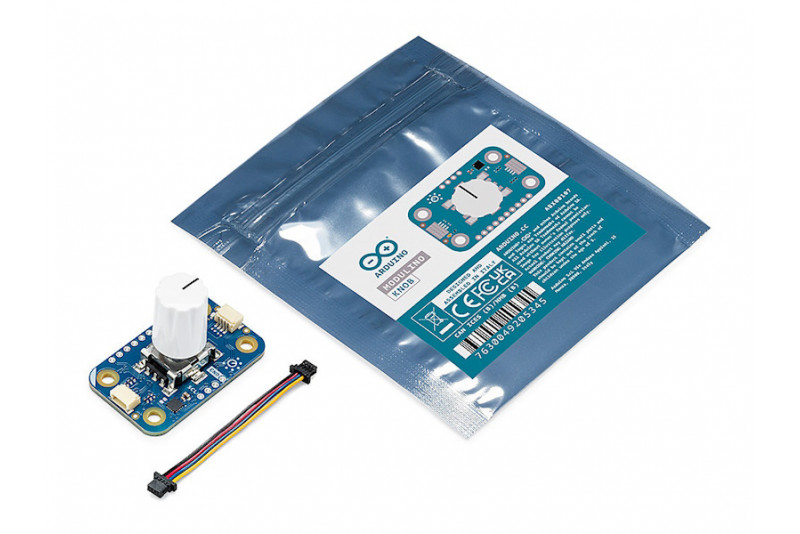

Package Includes:

• Modulino® Knob module
• Qwiic cable (5 cm)

Link:

Datasheet (PDF)
