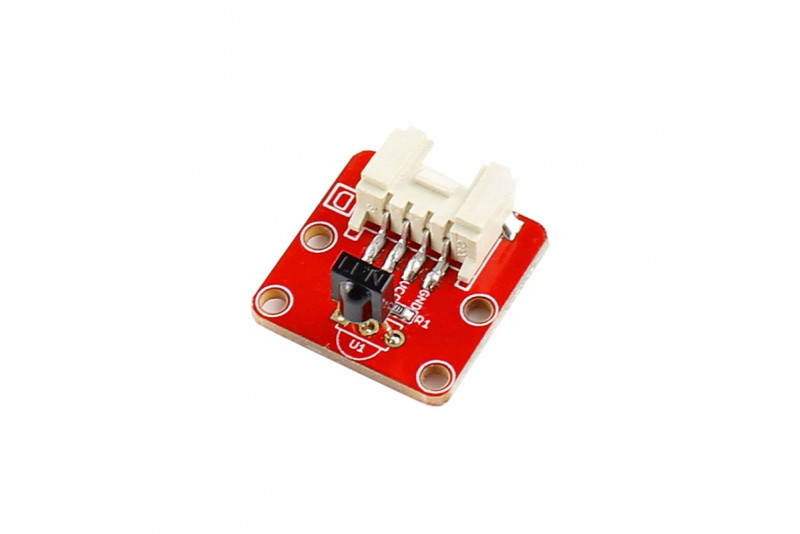

Crowtail IR Receiver 2.0

The Crowtail- IR Receiver module uses the HS0038B which is miniaturized receivers for infrared remote control systems and it is the standard IR remote control receiver series, supporting all major transmission codes.

The IR detector have a demodulator inside that looks for modulated IR at 38 KHz. The Infrared Receiver can receive signals well within 10 meters. If more than 10 meters , the receiver may not get the signals. We often use the two Crowtail-the Infrared Receiver and the Crowtail- Infrared Emitter to work together.

Specification

• Connection Mode: D(digtal)
• Voltage:3.3-5V
• Distance:10m
• Dimensions(mm):20.0(L)x20.0(W)x11.0(H)

Part List

• 1 X Crowtail- IR Receive
• 1 X Crowtail 4 Pin Cable

Wiki & External links

• IR Receiver Schematic
• IRSendRev Program
• Wiki link
