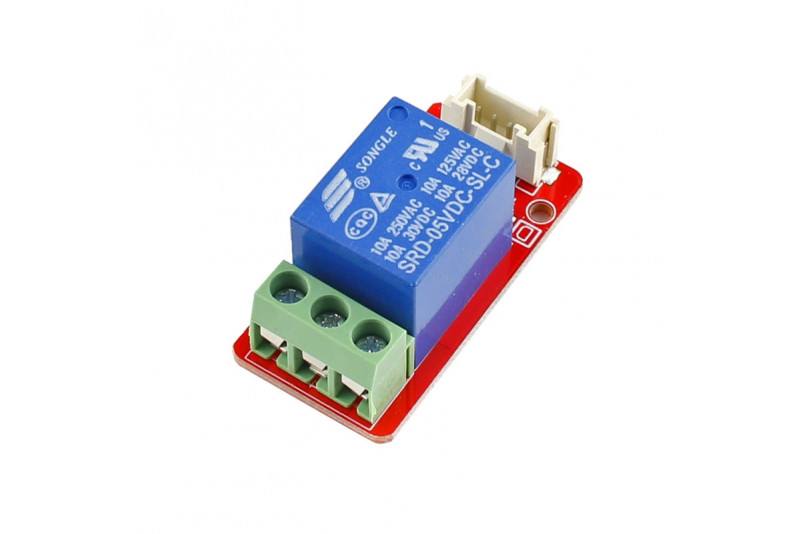

Crowtail Relay 2.0

Note! Not for professional use. Do not use this device to operate mains voltage devices. Only for voltages under 50VAC/DC.

The Relay is the most common used module in actually application such as home automation, and sometimes you need to control large current such as the air conditioning/water heater. That is what this Large Current Relay Module can be help.

This Large Current Relay Module is a high quality Single Pole Souble Throw Relay(SPST). When the relay not triggered, the 2 outputs is disconnected; when the relay triggered(Logic Low), the 2 outputs connected, the max current can be up to 30A@240VAC or 30A@30VDC, which would be enough for most of the home appliances.

Specification

• Control Voltage: 5V
• Nominal Current: 185mA
• Dimensions(mm):40.0(L)x20.0(W)x17.2(H)

Part List

• 1 X Crowtail- Relay
• 1 X Crowtail 4 Pin Cable

Wiki & External links

• Relay Schematic
• Relay Program
• Wiki link
