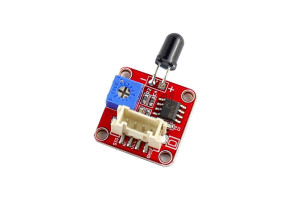

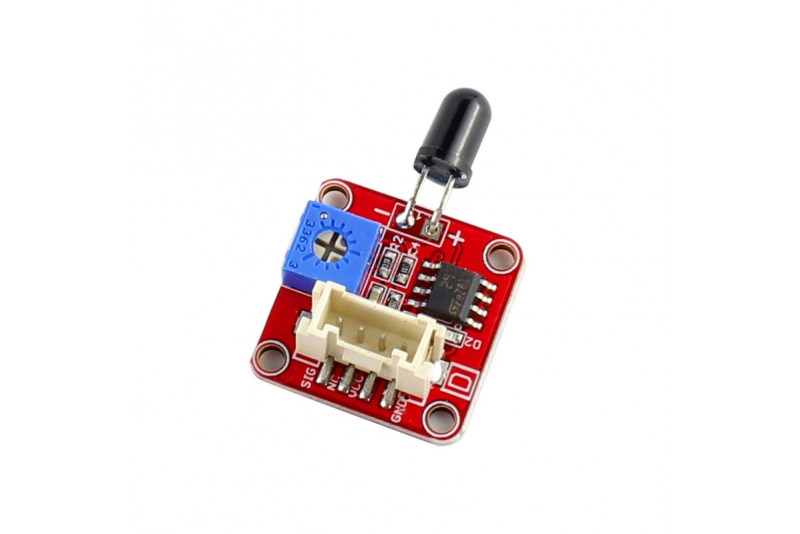

Crowtail Flame Sensor 2.0

The Crowtail- Flame Sensor can be used to detect fire source or other light sources of the wavelength in the range of 760nm - 1100 nm. It is based on the YG1006 sensor which is a high speed and high sensitive NPN silicon phototransistor. Due to its black epoxy, the sensor is sensitive to infrared radiation. In fire fighting robot game, The sensor plays a very important role, it can be used as a robot eyes to find the fire source. And we try to add it into our other new product called wifi smart car, to achieve flame- avoid function. so every thing will be interesting if you could found fun.

Features

• Work Voltage:5V
• Crowtail compatible interface
• Easy to use
• Sensitivity can adjustable
• Dimensions(mm):32.0(L)x20.0(W)x9.8(H)

Package list

• Crowtail- Flame Sensor x 1

Wiki & External links

Wiki link
