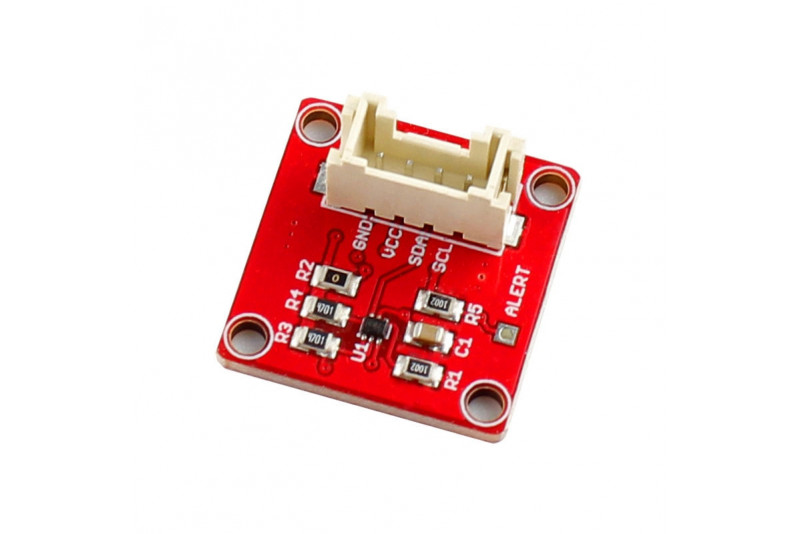

Crowtail Digital Temperature Sensor 2.0 (TM102)

The module is a crowtail temperature sensor, its capable of reading temperature to a resolution is 0.0625 °C. The TMP102 is a two wire, serial output temperature sensor which available in a SOT563 package. It is compatible with SMBus and I2C interface, that can allow four device in one bus. At the same time, it is also a digital temperature sensor, which has higher stability than analog sensors and is more compatible with your design.

The TM102 can be used on a variety extended temperature measurement, such as communication, computer, consumer, environmental, industrial and instrumentation applications.

Features

• The device is specified for operation over a temperature range of –40°C to +125°C.
• The temperature resolution can reach 0.0625 °C
• TMP102 is compatible with SMBus and I2C interface.

Specifications

• Accuracy: 0.5 °C (–25°C to +85°C)
• Supply range: 1.4v to 3.6v
• Digital output: two-wire serial interface
• Working voltage: 5V
• Supply mode: Crowtail interface
• Dimensions(mm):20.0(L)x20.0(W)x9.8(H)

Package list

• Crowtail- Digital Temperature Sensor x 1
• 4 Pin Crowtail Cable x 1

Wiki & External links

• User manual (wiki link)
