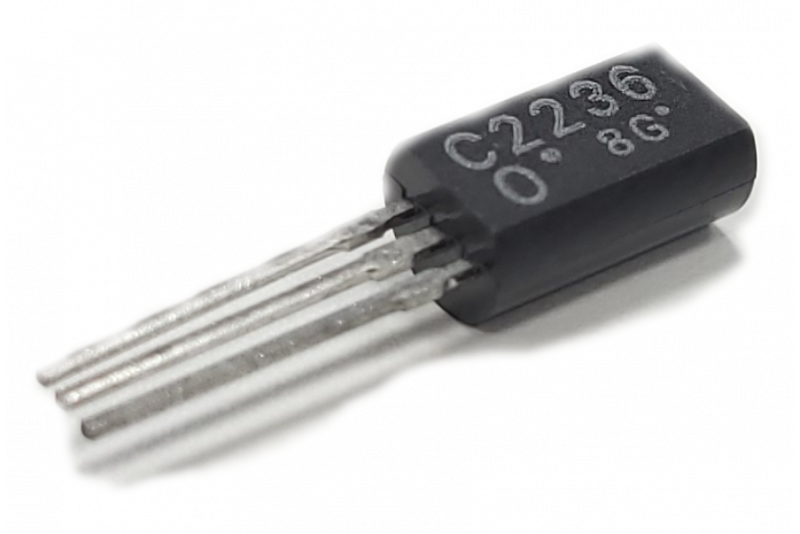

TRANSISTOR 2SC2236 View larger

TRANSISTOR 2SC2236

2SC2236

895 Items

In stock

0,33 €

10+0,30 €

BJT NPN 30V 1,5A 0,9W TO92

  • Transistor Type: NPN
  • Package: TO-92MOD
  • Maximum Ratings:
    • Collector-Base Voltage (VCBO): 30 V
    • Collector-Emitter Voltage (VCEO): 30 V
    • Emitter-Base Voltage (VEBO): 5 V
    • Collector Current (IC): 1.5 A
    • Base Current (IB): 0.15 A
    • Collector Power Dissipation (PC): 900 mW
    • Junction Temperature (Tj): 150°C
    • Storage Temperature Range: −55 to 150°C
  • DC Current Gain (hFE): 100 to 320 (depending on classification)
  • Transition Frequency (fT): 120 MHz
  • Collector-Emitter Saturation Voltage (VCE(sat)): ≤ 2.0 V
  • Base-Emitter Voltage (VBE): ≤ 1.0 V
CaseTO92 (SC51)
PinoutECB
