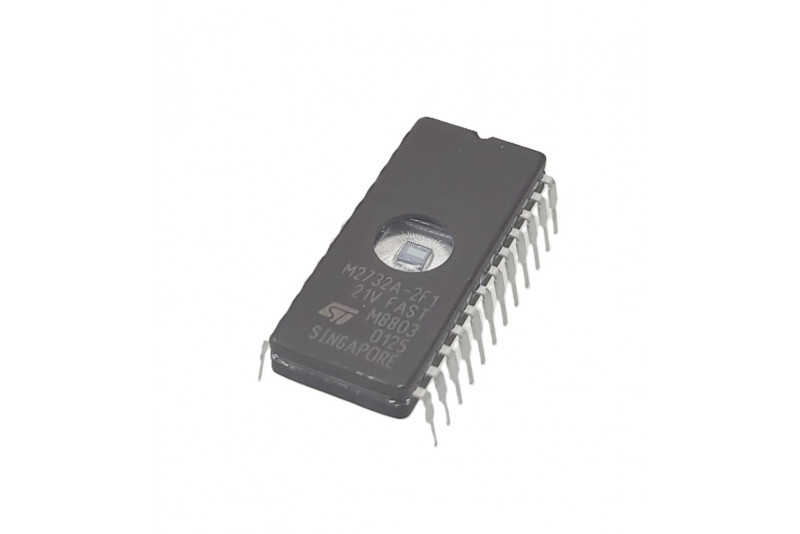

General Description
- Type: UV Erasable and Electrically Programmable Read-Only Memory (EPROM)
- Organization: 32,768 bits (4,096 words × 8 bits)
- Package: 24-pin Ceramic Dual In-Line Package (CDIP24) with a transparent window for UV erasure
Electrical Characteristics
- Access Time: 200 ns (FAST)
- Supply Voltage (Vcc): 5V
- Programming Voltage (Vpp): 21V
- Standby Current: Max 35 mA
- Inputs/Outputs: TTL compatible during read and program
- Operation: Completely static
Environmental & Physical
- Extended Temperature Range
- UV Erasable: Requires exposure to ultraviolet light to erase stored data
- Programming: Requires a specific programming procedure after erasure
Use Case
Ideal for applications requiring:
- Fast turnaround
- Pattern experimentation
- Reliable static memory performance
