New LED 5 mm GREEN 10 mcd 60 deg View larger

LED 5 mm GREEN 10 mcd 60 deg

L-53GD

226 Items

In stock

Manufacturer homepage

0,21 €

10+0,17 €
100+0,13 €

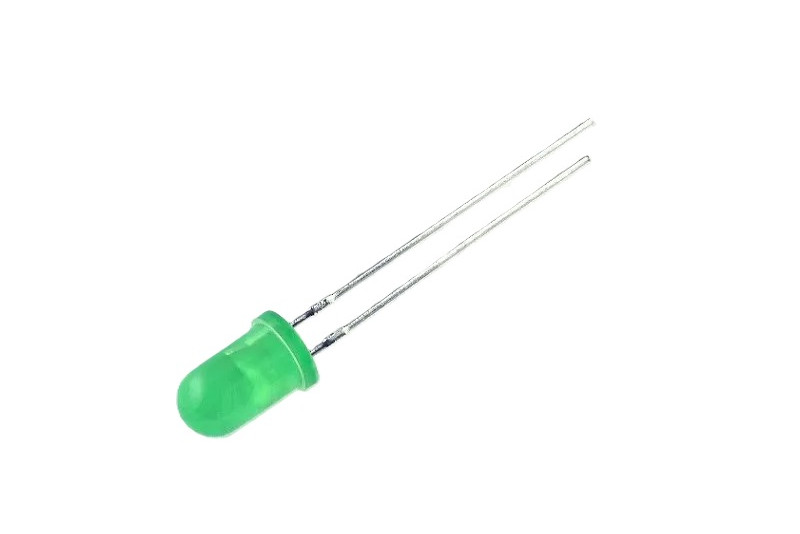

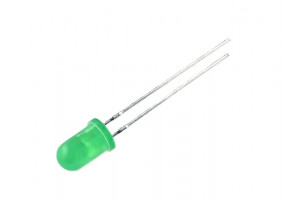

5 mm Green basic LED

  • Type: Solid State Lamp (T-1 3/4 or 5mm LED)
  • Color: Green
  • Lens Type: Diffused, convex front
  • Wavelength:
    • Peak: 565 nm
    • Dominant: 568 nm
  • Luminous Intensity: 5 to 32 mcd (typical: 20 mcd)
  • Viewing Angle: 60°
  • Forward Voltage: 2.2 to 2.5 V
  • Forward Current: 10–20 mA (max 25 mA)
  • Reverse Voltage: 5 V
  • Power Dissipation: Max 105 mW
  • Operating Temperature: –40°C to +85°C
  • Mounting Style: Through-hole (THT)
  • Package Dimensions: Diameter 5 mm, Height ~8.6 mm

ManufacturerKingbright
Manufacturer's modelL-53GD
Colourgreen
SizeØ5mm

L-53GD

Download (59.65k)
