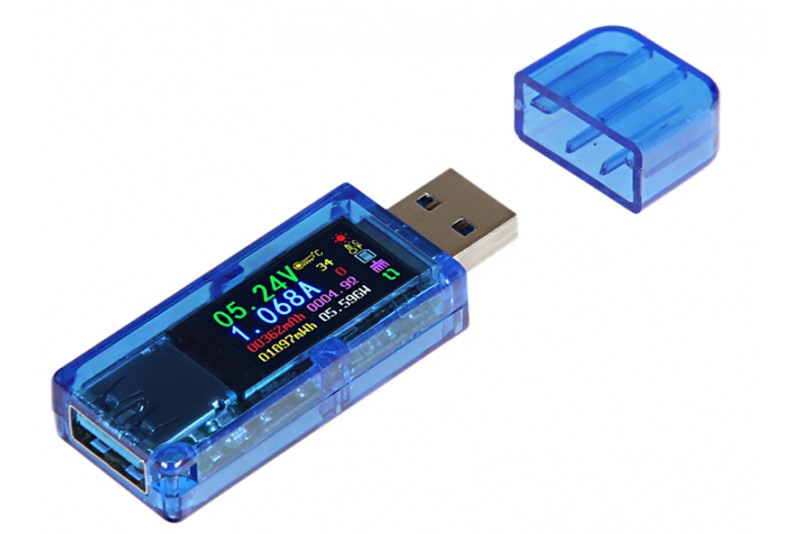

USB MULTIFUNCTIONAL VOLT/AMMETER

The AT-34 is a small but multifunctional USB multimeter.

By supporting current Quick Charge standards it can also easily be used in conjunction with current handheld hardware.

Specifications

• Screen: 0.96 Inch IPS Display
• Refresh rate: 2 Hz
• Interface: USB 3.0 (2.0 compatible)
• Quick Charge Recognition: QC2.0, QC3.0, Apple 2.4A/2.1A/1A/0.5A, Android DCP, Samsung
• Voltage measurement range: 3.7 - 30V
• Voltage resolution: 0.01V
• Voltage accuracy: ±0,8 %(+4 digits)
• Current measurement range: 0-4 A
• Current resolution: 0.001 A
• Current accuracy: ±1 %(+4 digits)
• Power measurement range: 0-120 W
• Capacity accumulation range: 0 -99999 mAh
• Energy accumulation range: 0 -999,99 Wh
• Load impedance range: 1 -9999.9 Ω
• Temperature measurement range: 0 - 80°C
• Operating temperature range: 0 - 45 °C
• Temperature measurement error: ± 3 °C
• Dimensions: 64 x 22 x 12mm
• Weight: 28 g
• Items Shipped: JT-AT34 USB meter
• EAN: 4250236818696

Links

• JT-AT34 Datasheet English - 211,51 KB
• JT-AT34 Manual English - 680,31 KB
