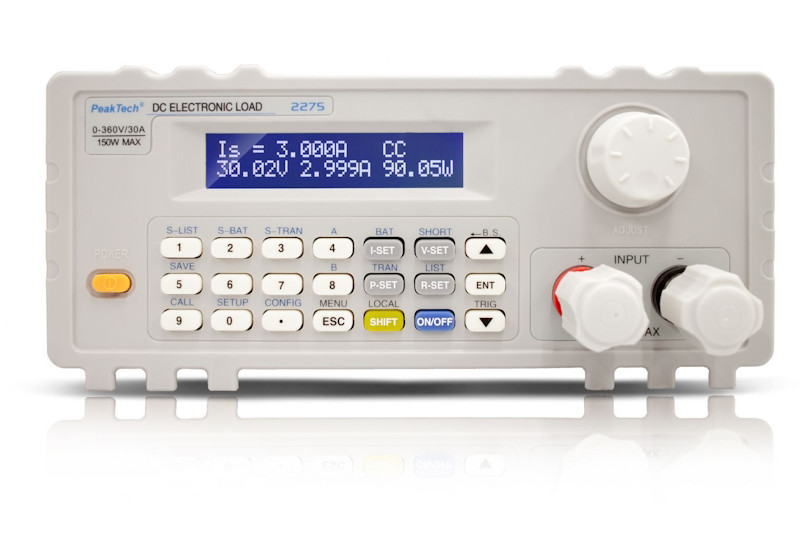

PeakTech 2275 DC ELECTRONIC LOAD WITH USB 150W

PeakTech 2275® - Electronic DC load 150W. Suitable for testing power supplies, batteries, solar panels, etc. Constant current, voltage, resistance and power modes allow the load to be driven at a precisely defined operating point. Operation can be automated by PC control. This allows, for example, the creation of an automated test program and data collection.

Features

• Standard current mode
• Standard voltage mode
• Standard resistance mode
• Standard power mode
• PC control

Technical specifications

• Max. current: 30A
• Max. voltage: 360V
• Max. Max. power: 150W
• Resolution: 1mA/1mV/1mΩ/1mW

Download the PC software (Windows) from this link

Delivery includes: electronic load, power cord, user manual, USB-COM adapter, software on CD.
