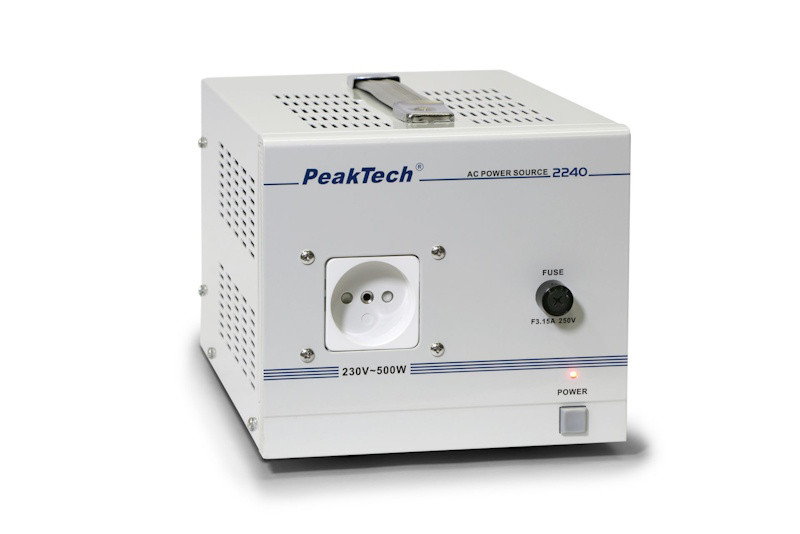

PeakTech 2240 Isolating transformer 230/230 575VA

PeakTech 2240 isolating transformer provides galvanic isolation between the primary and secondary voltage.

Features

• Grounded protection class I housing
• Maximum power: 500 W
• Nominal current: 2.5 A AC (for resistive loads only)
• Output voltage: 230 V AC, 50 Hz
• Input voltage: 230 V AC, 50 Hz
• Dielectric strength: 4200 V DC (1 min, 10 mA)
• Insulation resistance: 7 MΩ (500 V DC)
• Fuse: 4 A / 250 V
• Output connection: unearthed F-type socket
• Passive cooling
• Operating temperature: +10 ... +40 °C
• Storage temperature: -10 ... +50 °C
• Dimensions (WxHxD): 160 x 135 x 210 mm
• Weight: 7.5 kg
• Safety standard: EN 61010-1

Package Contents

• PeakTech 2240 isolating transformer
• Power cord
• Spare fuse
• User manual
