New TV/RADIO ANTENNIKAAPELI 75ohm Ø6,8mm VALKO View larger

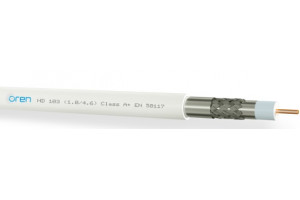

TV/RADIO ANTENNIKAAPELI 75ohm Ø6,8mm VALKO

AL112PVCA100HD

100 Items

In stock

Manufacturer homepage

1,25 €

10+1,05 €

  • Nominal impedance: 75 Ohm
  • Inner conductor material: copper
  • Inner conductor diameter: 1.02 mm
  • Outer conductor diameter: 4.8 mm
  • Inner conductor class: class 1 = single-core
  • Outer conductor material: copper
  • Outer sheath material: PVC
  • Inner conductor surface treatment: bare
  • Outer conductor surface treatment: tinned
  • Number of protective layers: 3
  • Outer sheath color: white
  • Fire behavior according to EN 13501-6: Eca
  • Cable outer diameter (approx.): 6.8 mm
  • Intermediate conductor: PE foam
  • Outer conductor type: foil + braid
  • Operating temperature, fixed: -30-70 °C
  • Minimum permissible bending radius in fixed installations: 35 mm
  • Weight: 48.2 kg/km
  • Maximum tensile strength during installation: 0.11 kN
  • Number of sheath layers: 1
QuantityBy meter
Colourwhite
Impendance75 Ohm
