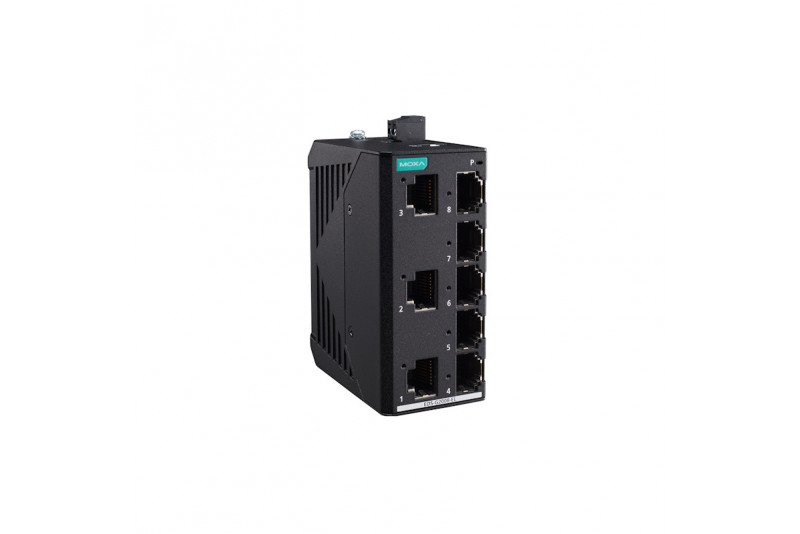

Moxa Gigabit Ethernet switch, 8xRJ45, IP40 EDS-G2008-EL

Features:

• 8 x 10/100/1000BaseT(X) Ethernet ports (with RJ45 connectors)
• Compact and lightweight metal housing, easy DIN-rail or wall mounting (with optional accessory)
• Support for Quality of Service (QoS) and Broadcast Storm Protection (BSP)
• Wide input voltage range and protection against overcurrent and reverse polarity
• Operating temperature:
  • EDS-G2008-EL: -10 to +60 °C
  • EDS-G2008-EL-T: -40 to +75 °C

Technical Specifications:

• Full/Half-duplex mode
• Auto MDI/MDI-X detection
• Auto speed detection
• MAC address table size: 8K
• Buffer memory: 1.5 Mbit
• Data processing: Store and Forward

Supported Standards:

• IEEE 802.3 (10BaseT)
• IEEE 802.3u (100BaseT(X))
• IEEE 802.3ab (1000BaseT(X))
• IEEE 802.1p (Class of Service)
• IEEE 802.3x (Flow Control)

Network Features:

• Quality of Service (QoS)
• Broadcast Storm Protection (BSP)

Connections and Power Supply:

• 1 x removable 2-pin terminal block
• Input voltage: 12/24/48 VDC
• Operating range: 9.6 – 60 VDC
• Power consumption: 0.21 A (max.)
• Overcurrent protection: Yes
• Reverse polarity protection: Yes

Physical Characteristics:

• Dimensions: 18 x 81 x 65 mm
• Weight: 120 g
• Housing: Metal
• Mounting: DIN-rail or wall mount (with optional accessory)
• Storage temperature (packed): -40 to +85 °C
• Relative humidity: 5 – 95% (non-condensing)

Standards and Certifications:

Safety:

• UL 61010-2-201
• EN 62368-1 (LVD)

EMC (Electromagnetic Compatibility):

• EN 55032 / EN 55035
• EN 61000-6-2 / EN 61000-6-4

EMI (Electromagnetic Interference):

• CISPR 32
• FCC Part 15B, Class A

EMS (Electromagnetic Susceptibility):

• IEC 61000-4-2 (ESD): contact 6 kV, air 8 kV
• IEC 61000-4-3 (Radiated): 80 MHz – 1 GHz, 20 V/m
• IEC 61000-4-4 (Burst): 1 kV (power and signal lines)
• IEC 61000-4-5 (Surge): 1 kV (power and signal lines)
• IEC 61000-4-6 (Conducted): 10 V
• IEC 61000-4-8 (Magnetic field)

Mechanical Durability:

• IEC 60068-2-27 (Shock resistance)
• IEC 60068-2-6 (Vibration resistance)
• IEC 60068-2-32 (Drop resistance)
