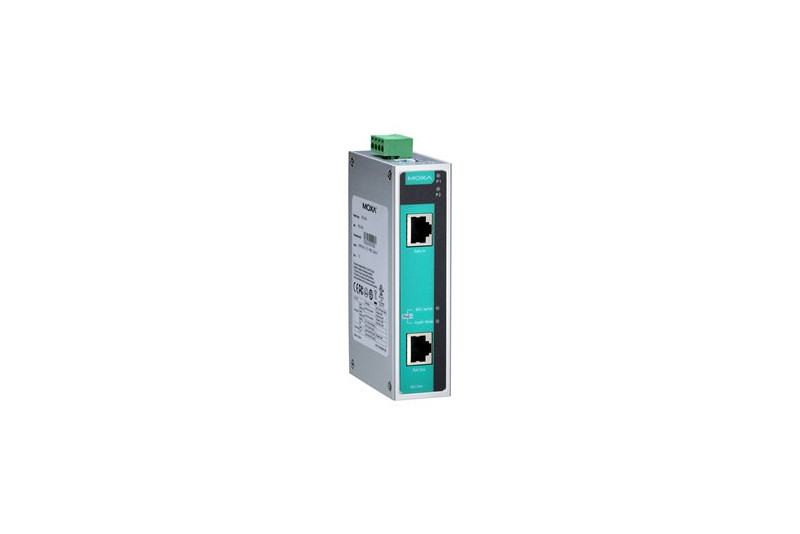

Moxa PoE+-INJECTOR 60W, -40-75C

Features:

• 1 pcs of 10/100/1000BaseT(X) Ports (RJ45 connector)
• 1 pcs of PoE Ports (10/100/1000BaseT(X), RJ45 connector)
• IP30-rated metal housing
• -40 to 75°C operating temperature range
• DIN-rail mountable
• DIP switch configurator and LED indicator for PoE management
•  3 kV surge resistance for harsh environments
• Mode A and Mode B selectable for flexible installation

Specifications:

• IEEE 802.3 for 10BaseT
• IEEE 802.3ab for 1000BaseT(X)
• IEEE 802.3af/at for PoE/PoE+ output
• IEEE 802.3u for 100BaseT(X)

Standards and Certifications:

• Safety

          UL 508, EN 60950-1

• EMC

  EN 55032/24

• EMI

  CISPR 32, FCC Part 15B Class A

• EMS

IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV
IEC 61000-4-5 Surge: Power: 3 kV; Signal: 3 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF

• Freefall

  IEC 60068-2-31



• Shock

IEC 60068-2-27

• Vibration

IEC 60068-2-6

Tulojännite:

• 24/48 VDC redundant dual power inputs
