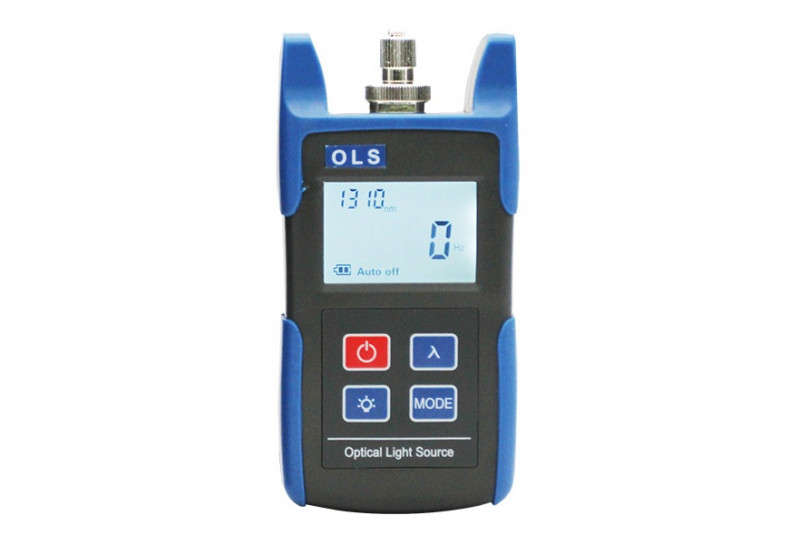

TC-68A Stable Optical Light Source

The TC-68A optical light source provides high output power and ultra-low power consumption. The device operates at wavelengths of 1310 / 1550 nm and supports single, dual, or triple wavelength modes. TC-68A also supports multiple modulation frequencies (CW, 270 Hz, 1 kHz, and 2 kHz).

The clear LCD display and battery operation make it a reliable and easily portable tool for both field and laboratory use.

Features

• Stable output power
• Optional auto-shutdown
• Large backlit LCD display
• Battery level indicator
• Supports multiple wavelengths and modulation frequencies
• Ultra-low power consumption

Applications

• Telecom network maintenance
• CATV system maintenance
• Fiber optic test laboratories
• Fiber optic sensors and measurements

Technical Specifications

• Model: TC-68A
• Wavelengths:
  • TC-68A: 1310 / 1550 nm
• Emitter type: FP-LD
• Optical connector: FC / SC
• Output power: ≥ -7 dBm
• Output stability: ±0.04 dB @ 20 °C / 15 min
• Modulation frequencies: CW, 270 Hz, 1 kHz, 2 kHz
• Fiber type: SM, MM
• Power supply: 3 × AAA 1.5 V batteries
• Operating time: approx. 40 h
• Operating temperature: -10 °C – +50 °C
• Storage temperature: -20 °C – +70 °C
• Dimensions: 125 × 65 × 29 mm
• Weight: 160 g

Package Includes

• 1 x TC-68A Optical Light Source
• 2 x SC/FC connectors
• 1 x Protective case
• 1 x User manual
• 3 x AAA batteries
• 1 x Quality certificate
