Power resistor 200W (Pn @ 40°C)
- ohmic value 210 Ω +/- 10%
- size 360x60x31 mm
- weight 1,3kg
- with internal thermal switch
- cables 300mm
Pulse load @ Amb 40°C:
- 25,6kW 1s each 120s
- 5,2kW 5s each 120s
- 2,6kW 10s each 120s
- 0,7 kW 40s each 120s
Suitable for ABB drives:
- ACS580-01 0246-4
- ACS580-01 03A3-4
- ACS580-01 04A0-4
- ACS580-01 05A6-4

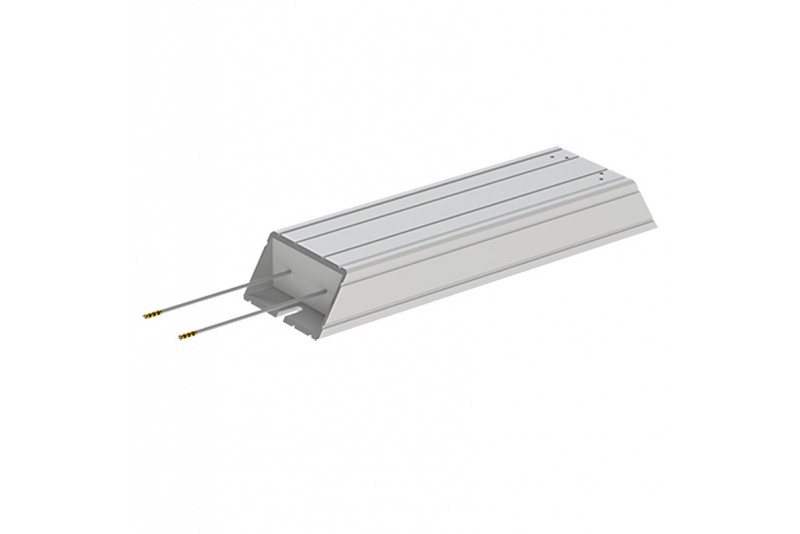

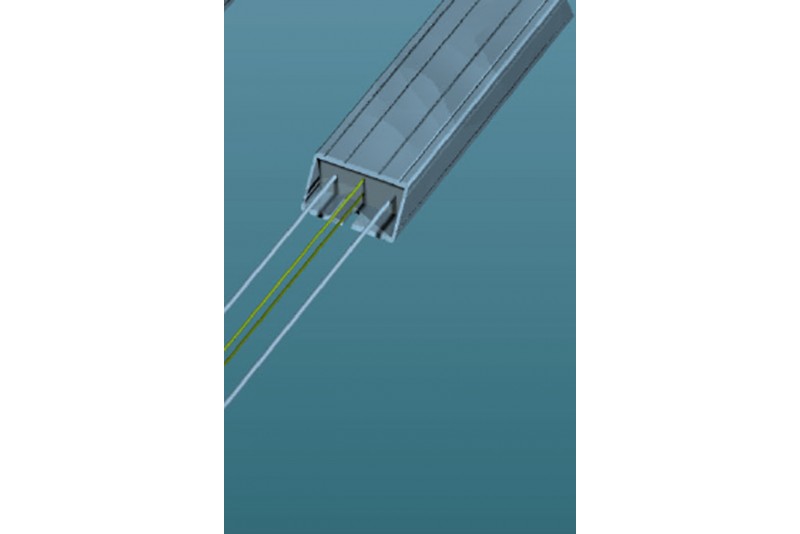

Cables of internal thermal switch not shown in the picture.
Picture is for reference only, exact information in data sheet.
