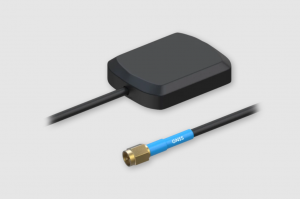

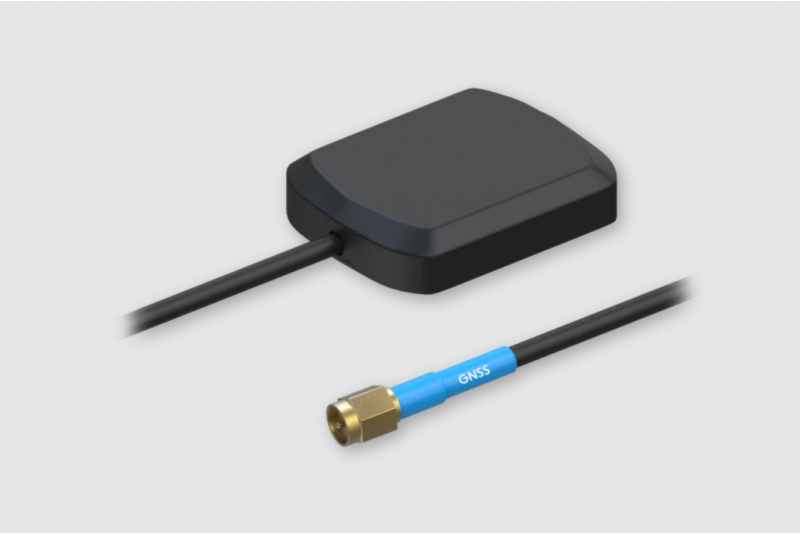

Teltonika GNSS ADHESIVE SMA ANTENNA

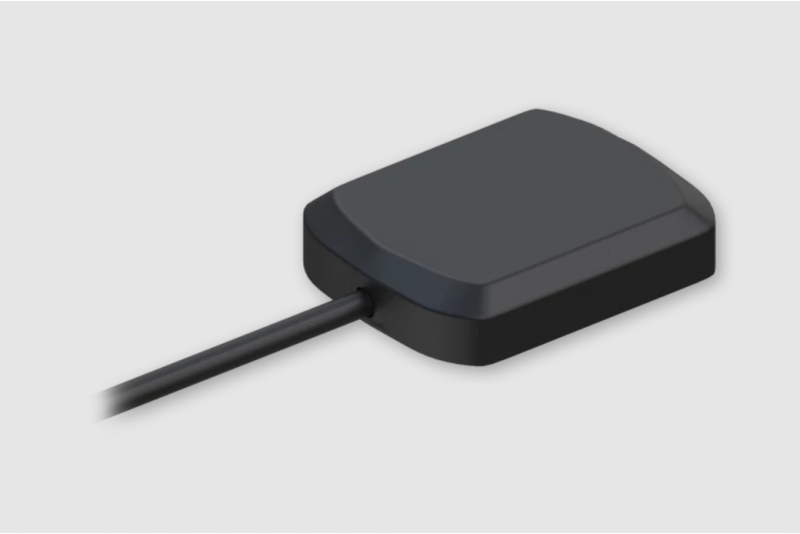

The antenna is very easy to install as it comes with an adhesive mounting that allows it to be attached directly to the device surface. The antenna has an SMA connector, which enables it to be connected to many different devices.

Antenna specifications

• Frequency range: 1575 ~ 1602 MHz
• Polarization: RHCP
• Gain: 2.0 dBi
• VSWR: 1.5
• Impedance: 50 Ω
• Axial ratio: 3 dB
• LNA gain: 26 ± 2 dB
• LNA noise figure: 1.5 dB
• Supply voltage: 2.2 - 5.0 VDC
• Current consumption: 5 - 15 mA
• LNA VSWR: 2.0
• Cable: RG174, 3000 mm

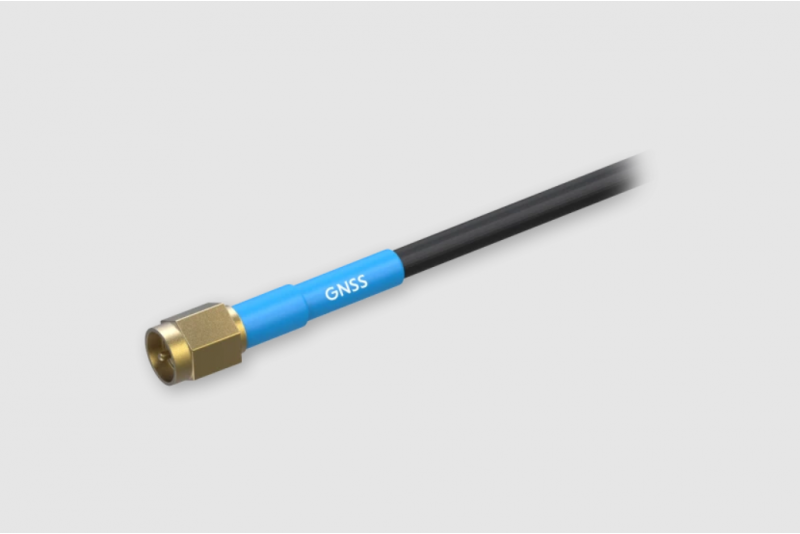

• Connector type: SMA Male
• Mounting method: Adhesive
• Operating temperature: -40 ~ +85
• Operating relative humidity: 95 %
• RoHS compliant: ✓

Compatible with Teltonika routers such as:

• RUTX09
• RUTX11
• RUTX12
• RUTX14
• RUTX50
• TRB245
• TRB255
