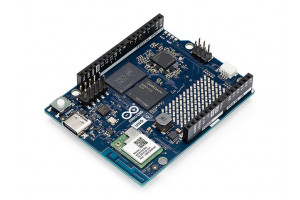

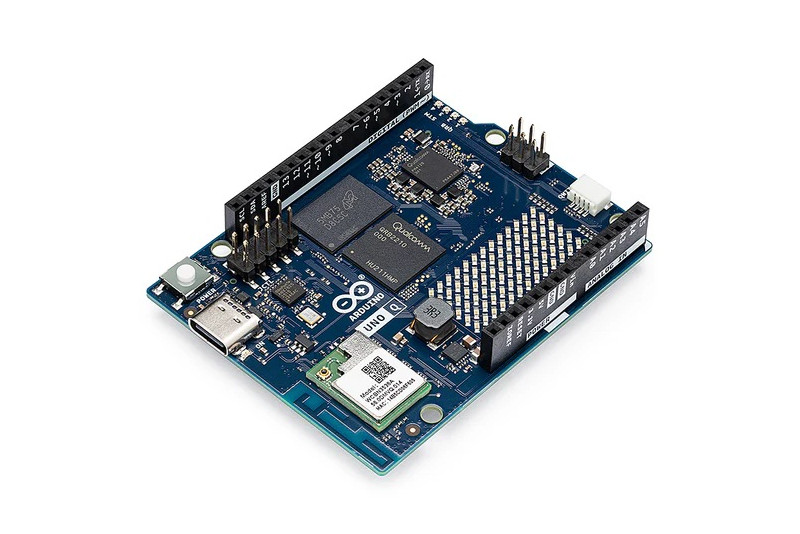

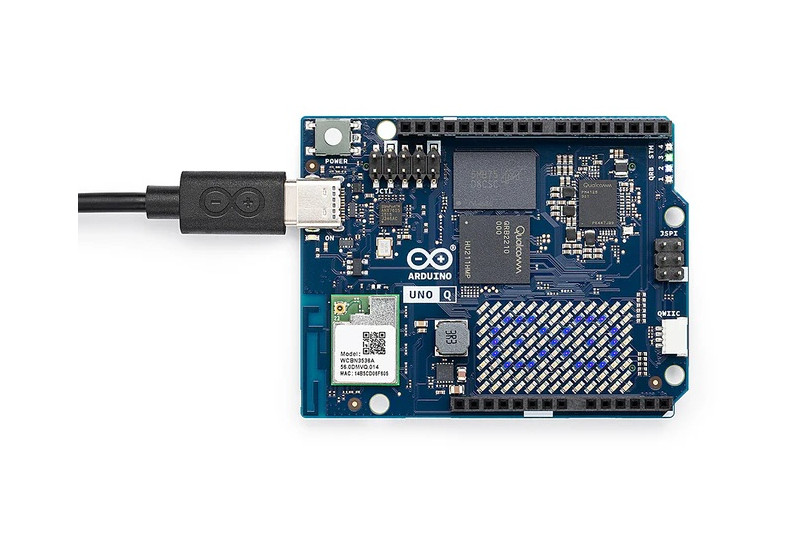

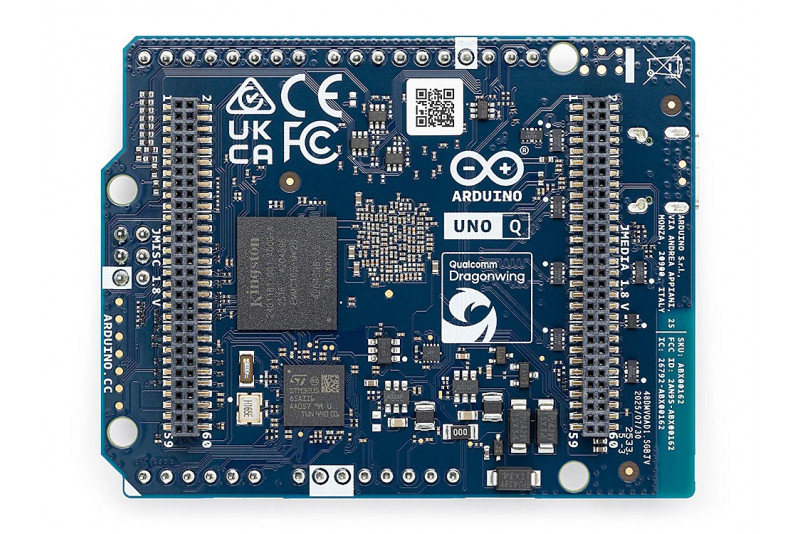

Arduino Uno Q (ABX00162)

The Arduino UNO Q (ABX00162) is a next-generation development board designed for edge computing and IoT applications. It features a Qualcomm® QRB2210 quad-core Arm® Cortex®-A53 processor running Debian Linux and an STM32U585 microcontroller running Arduino Core on Zephyr OS. This hybrid architecture allows developers to run high-level applications and real-time tasks on the same board.

Key Features:

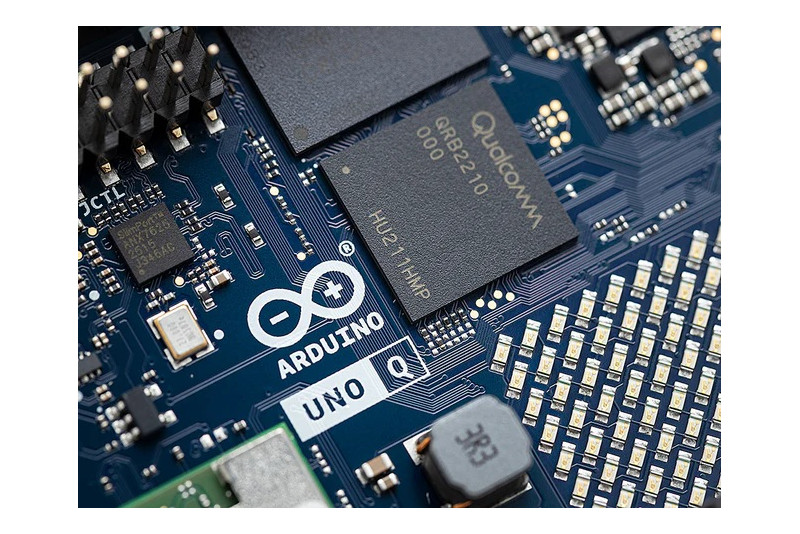

• Processor: Qualcomm® QRB2210, Quad-core Arm® Cortex®-A53 @ 2.0 GHz
• Microcontroller: STM32U585, Arm® Cortex®-M33 @ 160 MHz
• Memory: 2 GB LPDDR4X RAM, 16 GB eMMC storage
• Connectivity: Dual-band Wi-Fi® 5, Bluetooth® 5.1
• Interfaces: UART, I²C, SPI, I³C, CAN, JTAG, Qwiic connector
• Display & Indicators: 4 RGB LEDs, 8×13 LED matrix
• Power: USB-C® with Power Delivery and video output
• Operating Systems: Debian Linux + Zephyr OS
• Dimensions: 68.58 mm × 53.34 mm
• Compliance: CE, FCC, RoHS

Applications:

• Edge AI & Machine Learning
• Robotics and Automation
• Smart Devices and IoT
• Education and Prototyping
