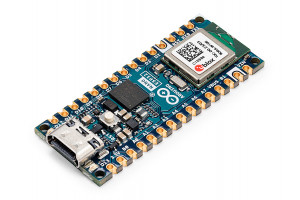

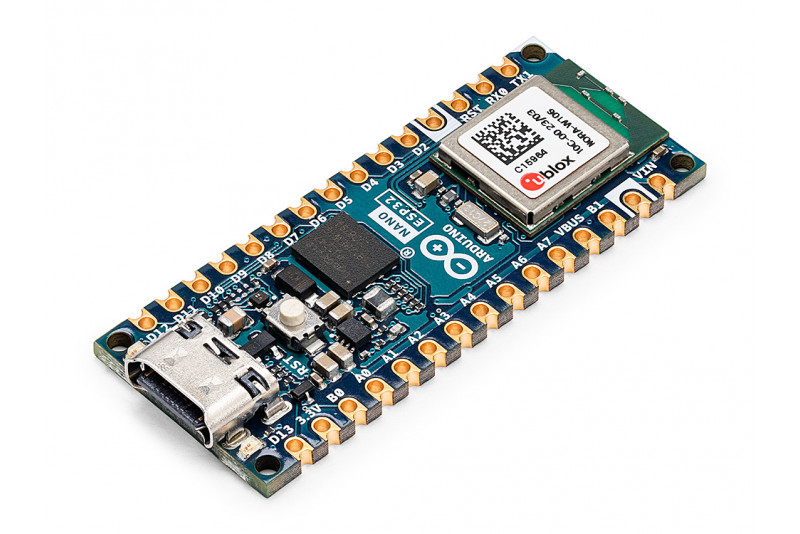

Arduino Nano ESP32 without headers (ABX00092)

ARD ABX00092

2 Items

In stock

Warning: Last items in stock!

Manufacturer homepage

24,60 €

Original Arduino® ABX00092 - The new member of the Nano family, the Nano ESP32 without headers. This card brings with it the performance of the well-known ESP32-S3. This model has no pin headers.

Features

  • Comes in the well-known Nano form factor with USB-C connector
  • Provides support for Micropython and Arduino
  • Introduces a new architecture in the Arduino family, covered by Arduino support, documentation and community
  • Provides plug-and-play debugging experience with Arduino IDE 2
  • ESP32 in nano-form factor (BT+WiFi)
  • Microphone and Arduino support
  • Plug-and-play troubleshooting

Tech Specs

Board NameArduino® Nano ESP32
SKUABX00092
Microcontrolleru-blox® NORA-W106 (ESP32-S3)
USB connectorUSB-C®
PinsBuilt-in LED Pin 13
Digital I/O Pins14
Analog input pins8
PWM pins5
External interruptsAll digital pins
ConnectivityWi-Fi® u-blox® NORA-W106 (ESP32-S3)
Bluetooth® u-blox® NORA-W106 (ESP32-S3)
CommunicationUART 1x, D0 (TX), D1 (RX)
I2C 1x, A4 (SDA), A5 (SCL)
SPID11 (COPI), D12 (CIPO), D13 (SCK)
Chip Select (CS)Use any GPIO
Power I/O Voltage3.3 V
Input voltage (nominal)5-18 V
Source Current per I/O Pin40 mA
Sink Current per I/O Pin28 mA
Clock speed Processorup to 240 MHz
MemoryROM 384 kB
SRAM 512 kB
External Flash 128 Mbit (16 MB)
DimensionsWidth 18 mm
Length 45 mm
EAN7630049204584
ManufacturerArduino
Manufacturer's modelABX00092
Measures18 x 45 mm
CompatibleArduino Nano
ConnectionUSB-C
ProcessorESP32
Clock frequency240MHz
Memory RAM512KB
Memory FLASH16MB
Network connectionsBT,Wifi
