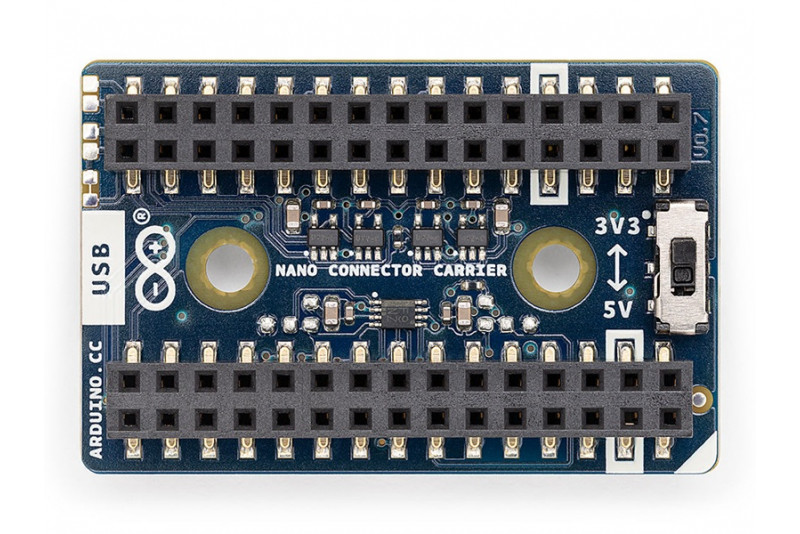

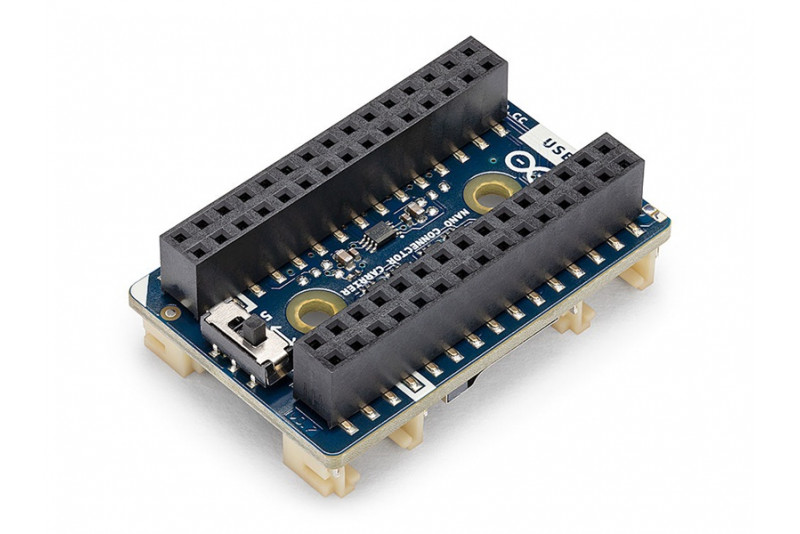

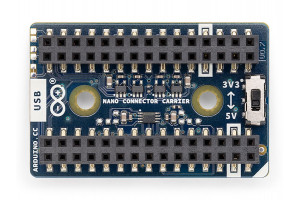

Arduino Nano Connector Carrier (ASX00061)

Arduino Nano Connector Carrier is designed for fast and flexible prototyping with Arduino Nano development boards. It expands the capabilities of the Nano family by providing ready-to-use Qwiic and Grove connectors, allowing sensors, actuators, and other modules to be connected directly without soldering or complex wiring. This makes development significantly faster and more reliable.

The board also features an integrated microSD card slot, opening up new possibilities for data storage, edge AI applications, and real-time data logging. The selectable I/O voltage (3.3V or 5V) ensures compatibility with a wide range of components. The Nano Connector Carrier is an excellent tool for hobbyists, educational use, and professionals who need a quickly adaptable and future-ready development platform.

Features

• Plug-and-play Qwiic and Grove connectors for rapid prototyping
• Compatible with Arduino Nano development boards
• Grove connectors for analog and digital I/O signals
• I2C and UART support via Grove connectors
• Qwiic connector for I2C devices

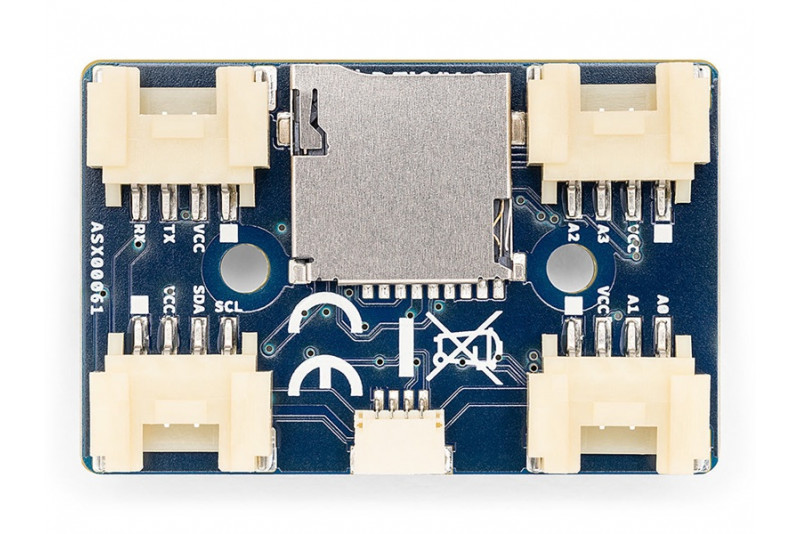

• Integrated microSD card slot for data logging and storage applications
• Selectable I/O voltage: 3.3V or 5V
• Compact design optimized for development use

Technical specifications

• Name: Arduino® Nano Connector Carrier
• SKU: ASX00061
• Grove connectors (analog/digital I/O): 2
• Grove I2C: Yes
• Grove UART: Yes
• Qwiic connector: Yes (I2C)
• External memory: microSD card reader
• I/O voltage: Selectable 3.3V / 5V
• Dimensions: 43 × 28 mm

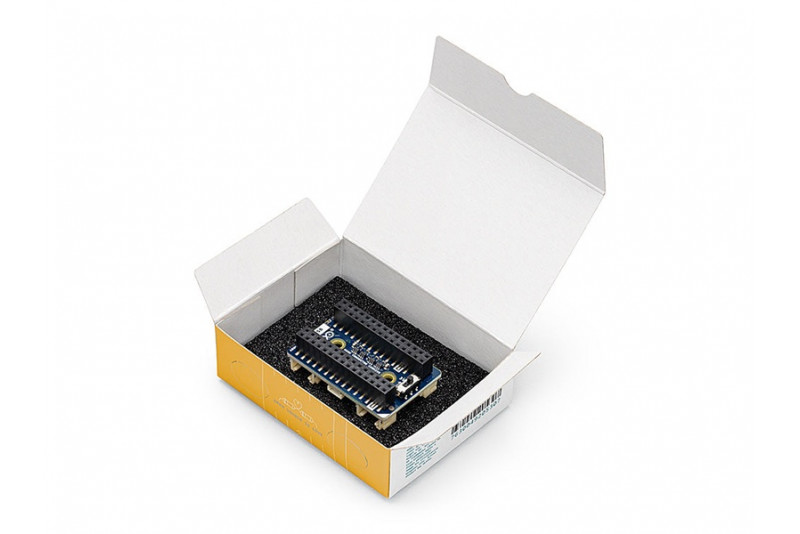

Package includes

• 1 x Arduino Nano Connector Carrier

Links

Nano Connector Carrier information page
