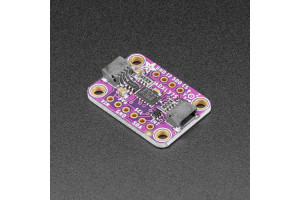

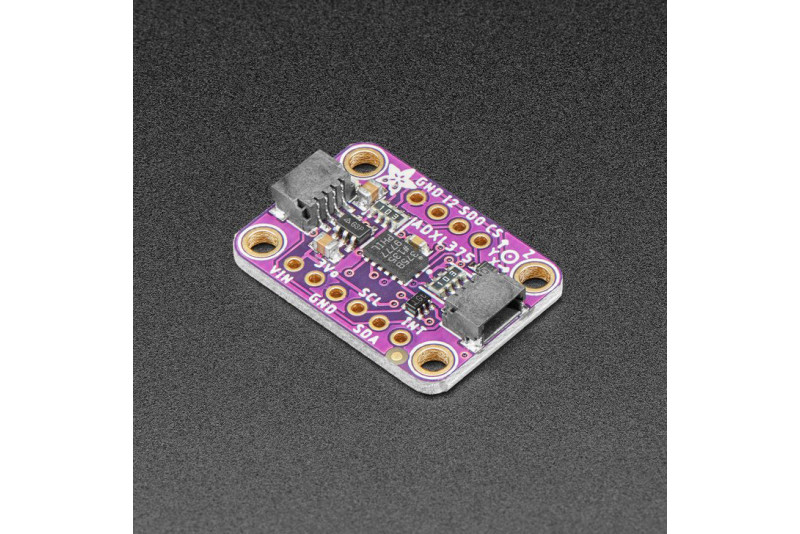

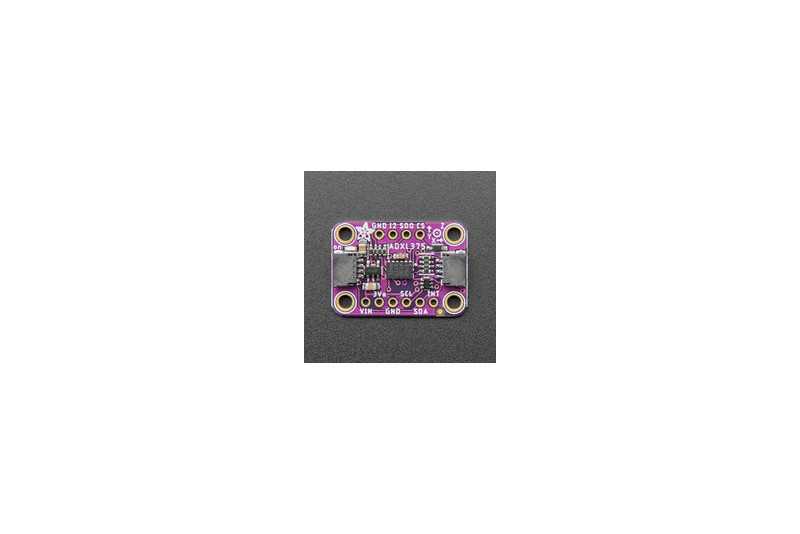

Adafruit ADXL375 HIGH G ACCELEROMETER

The Adafruit ADXL375 accelerometer provides a wide measurement range of up to 200 g across three axes (X, Y, Z). It belongs to the same family as the ADXL345 and ADXL343, but this model has a fixed range of 200 g. This makes it ideal for applications requiring detection of very strong accelerations, shocks, or vibrations.

The sensor supports both I2C and SPI interfaces, with two interrupt pins that can be flexibly assigned to different events. Built-in motion and shock detection features simplify implementation. Adafruit’s breakout board includes all required support circuitry and a STEMMA QT/Qwiic connector for solder-free connections. Ready-to-use Arduino and CircuitPython libraries are available, and the sensor also works with Raspberry Pi and other Linux-based boards via Blinka.

The module comes fully assembled and tested. Each unit includes a 9-pin 0.1" standard header and four mounting holes for secure attachment.

Technical Details:

• I2C address: 0x53 (default) or 0x1D
• Measurement range: fixed ±200 g
• Bandwidth: up to 1 kHz
• Built-in motion and shock detection
• Interfaces: SPI (3- or 4-wire) and I2C
• Temperature range: −40°C to +85°C
• Shock survival: up to 10,000 g
• Dimensions: 25.6 × 17.7 × 4.6 mm
• Weight: 1.0 g

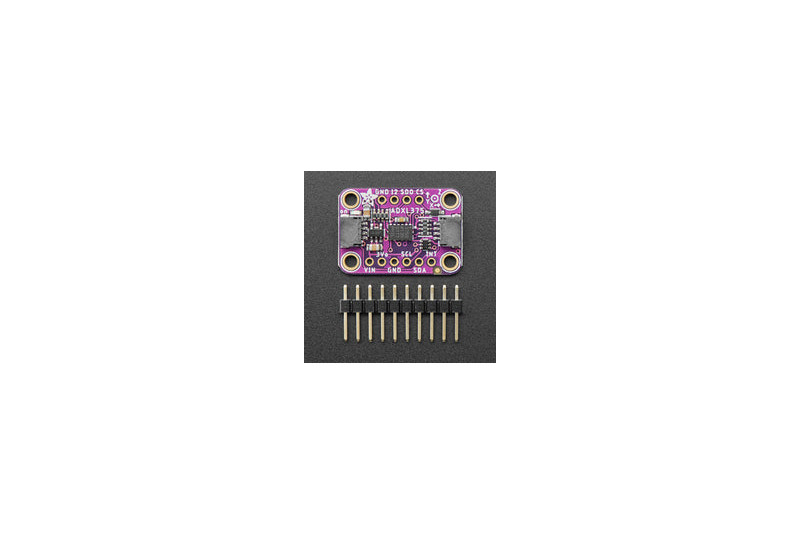

Package Includes:

• Adafruit ADXL375 breakout board
• 9-pin 0.1" header

Links:

• Product page
• ADXL375 Datasheet (PDF)
