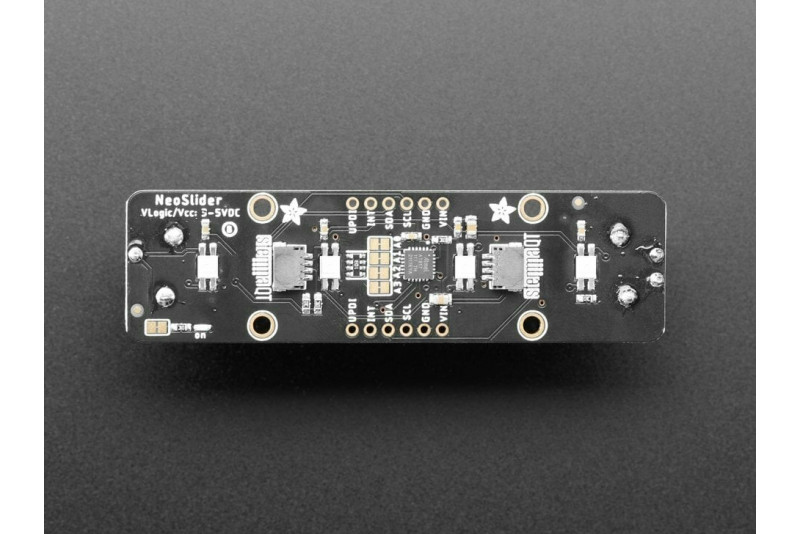

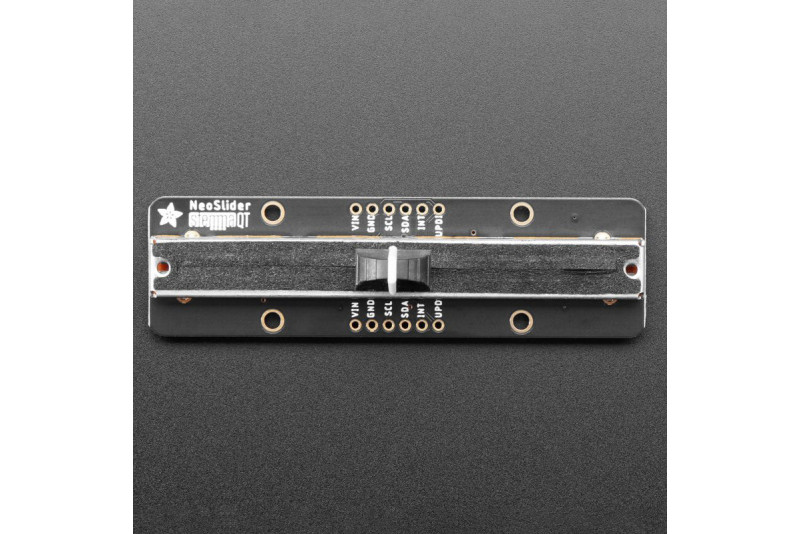

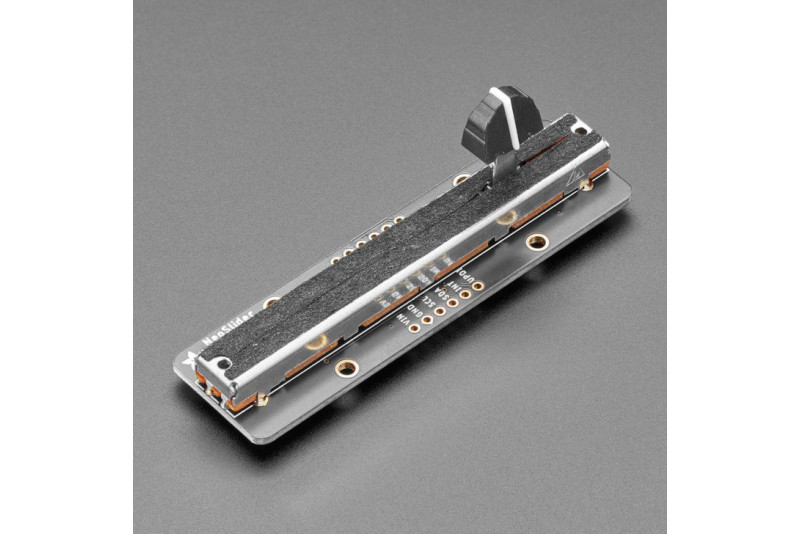

Adafruit NeoSlider SLIDE POTENTIOMETER WITH NEOPIXEL LEDS STEMMA QT I2C

Adafruit NeoSlider STEMMA QT slide potentiometer breakout combines smooth mechanical control with eye-catching illumination. At its center is a linear potentiometer, read through a small microcontroller that translates its position into I2C data. Underneath, four RGB NeoPixels provide fully customizable lighting, allowing you to pair control with visual feedback.

Connections are made simple with STEMMA QT and SparkFun Qwiic connectors, enabling solder-free integration. The default I2C address is 0x30, but can be reassigned up to 0x3F via configuration jumpers, allowing up to 16 slide pots on a single bus. The onboard seesaw coprocessor and support circuitry ensure compatibility with both 3V and 5V systems.

Getting started is quick thanks to Adafruit’s software support: an Arduino library is available along with CircuitPython and Python code, making the breakout usable with microcontrollers, computers, or single-board Linux systems. The module comes fully assembled and tested, ready for immediate use in your projects.

Technical Details:

• Dimensions: 76.2 × 29.8 × 21.5 mm
• Weight: 13.2 g
• Linear slide potentiometer
• 4 × RGB NeoPixels
• I2C address: default 0x30, configurable 0x30–0x3F
• Supports 3V and 5V power and logic
• STEMMA QT / Qwiic connectors

Package Includes:

• STEMMA QT slide potentiometer breakout
