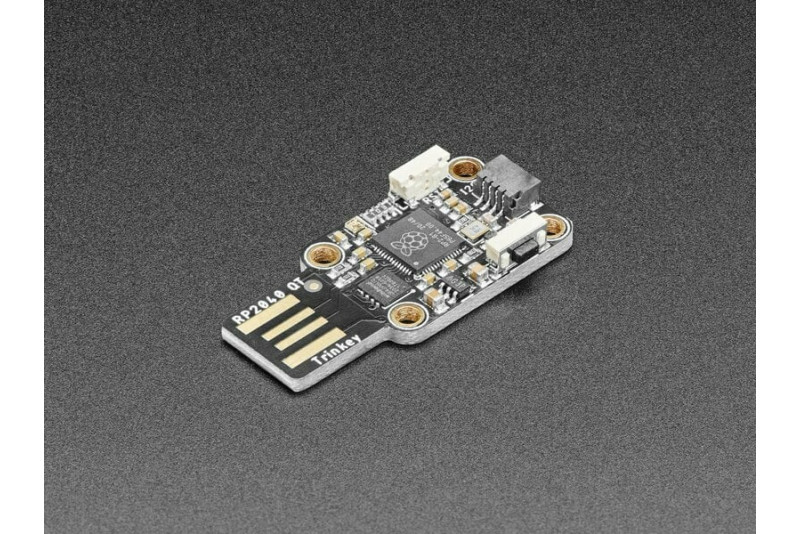

Adafruit Trinkey QT2040

The board features a Raspberry Pi RP2040 microcontroller, 264 KB RAM, and 8 MB of SPI Flash for storing CircuitPython or MicroPython code. It also includes a built-in RGB NeoPixel, Reset and Boot buttons, and a STEMMA QT port for connecting multiple I2C accessories such as sensors, OLED displays, and IMUs. The STEMMA QT port is SparkFun Qwiic-compatible, so everything is truly plug-and-play.

Native USB works with every operating system, allowing the board to appear as a serial console, MIDI device, HID keyboard/mouse, or even a small disk drive for Python scripts. Programming is easy thanks to the built-in UF2 bootloader – just hold the BOOT button while plugging it into USB to load new firmware.

The board measures only 1.0" × 0.7" (approximately 25.4 × 17.8 mm) and includes four mounting holes for attaching QT add-on boards with M2.5 standoffs and screws.

Features:

• USB-A connector with extra-thick PCB for a secure fit
• RP2040 microcontroller, 32-bit Cortex M0+ dual-core, ~125 MHz
• 264 KB RAM
• 8 MB SPI Flash for files and code storage
• Native USB: serial console, MIDI, HID, mass storage
• Compatible with MicroPython and CircuitPython
• Built-in RGB NeoPixel LED
• STEMMA QT / Qwiic port for I2C connectivity
• 3.3V regulator with 600 mA peak current
• Reset and Bootloader buttons (Boot can also be used in user code)
• Size: 1.0” × 0.7” (25.4 × 17.8 mm), with 4 mounting holes

Package Includes:

• 1 × Adafruit Trinkey QT2040 development board
