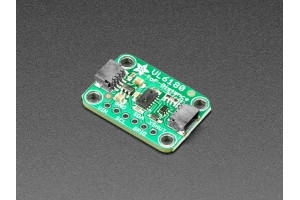

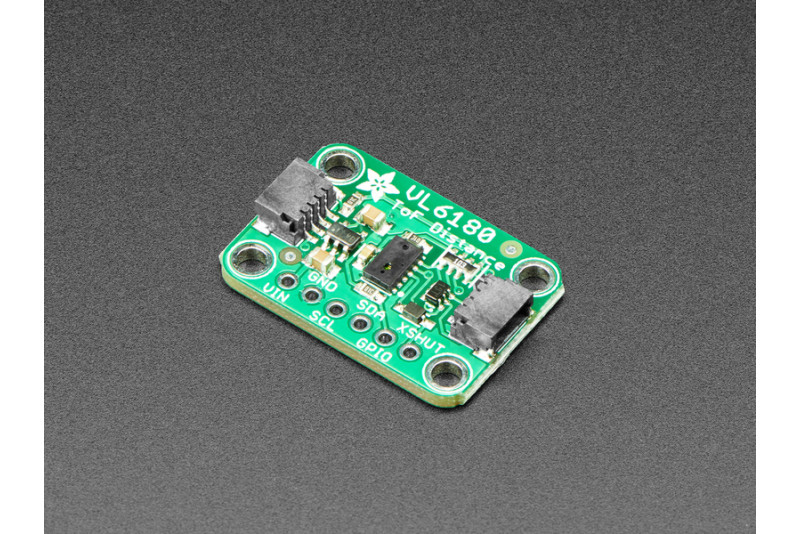

Adafruit VL6180X ToF LIDAR DISTANCE SENSOR STEMMA QT

The VL6180X uses Time-of-Flight (ToF) technology to measure how long light takes to travel from the sensor to an object and back. It provides distance measurements from 0–200 mm and operates at up to a 100 Hz update rate. The module features a STEMMA QT compatible connector for easy plug-and-play connections without soldering. Its wide operating voltage range (3.3–5.5 V) makes it a flexible solution for a variety of projects.

Technical Details

• Operating voltage: 3.3–5.5 V
• Distance range: 0–200 mm
• Update rate: up to 100 Hz
• Time-of-Flight (ToF) measurement technology
• I2C interface
• STEMMA QT compatible connector

Package Contents

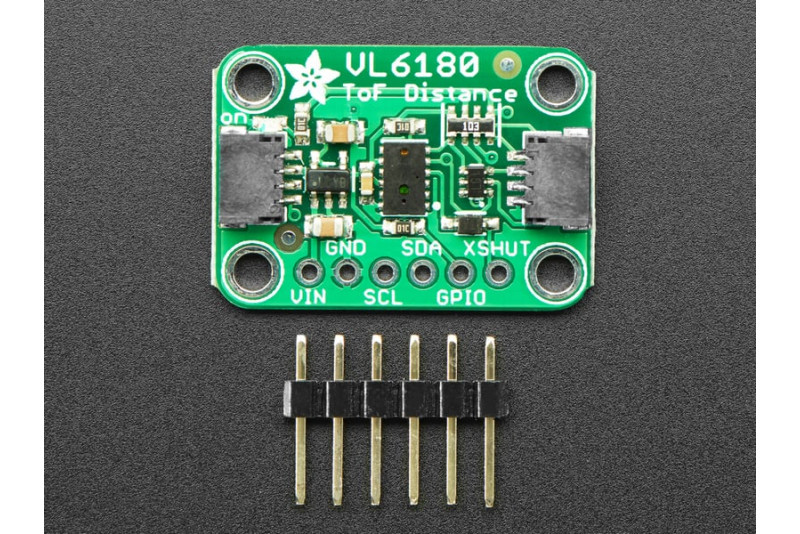

• 1 × Adafruit VL6180X Time of Flight Micro-LIDAR Distance Sensor Breakout
