1.28inch-ESP32 Round Display 240x240 IPS

Description:

CrowPanel ESP32 Display 1.28-inch round display uses ESP32-C3 as the main controller and is equipped with a 32-bit dual-core chip with a maximum clock speed of 160 MHz. It supports 2.4G WiFi and BLE low-power Bluetooth, suitable for IoT, smart home, and other applications.

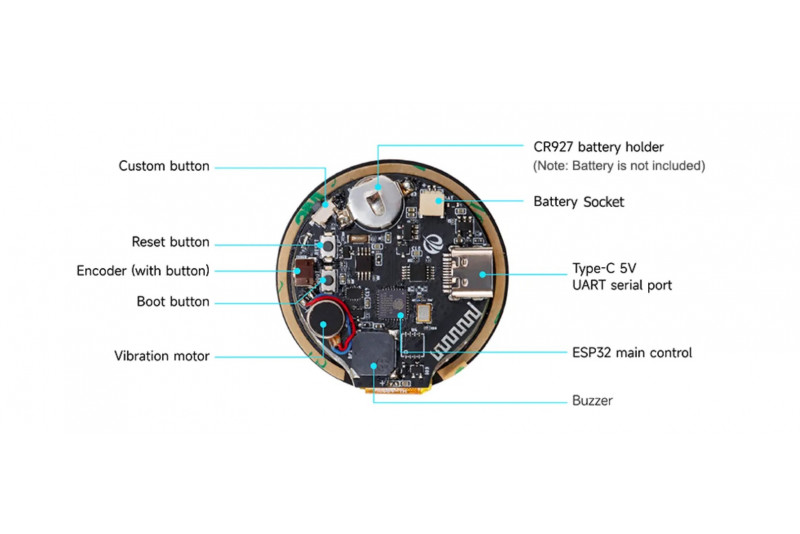

This 1.28-inch round display has a resolution of 240*240, IPS display, and 178° viewing angle, enabling more vivid and realistic images from any angle. It is equipped with a capacitive touch screen and is sensitive; it has custom buttons, RESET and BOOT buttons, and a UART serial port that allows for firmware updates. It supports Arduino IDE, Espressif IDF, Lua RTOS, Home Assistant/PlatformIO/Micro python, and LVGL library. You can design the user interface yourself, making it an ideal platform for DIY projects.

Features:

• 1.28-inch IPS circular display, 240×240 resolution
• Rotary encoder (requires separate knob)
• 32-bit RISC-V single-core processor, up to 160 MHz
• 384 KB ROM
• 400 KB SRAM (16 KB for cache)
• 8 KB SRAM in RTC
• Type-C connector, battery connector
• Wireless connections 2.4 GHz Wi-Fi (802.11 b/g/n), BLE 5.0
• Power consumption approx. 80mA
• Operating temperature -10 °C – 65 °C
• Supports Arduino IDE, Espressif IDF, Lua RTOS, Esphome-home assistant/PlatformIO/Micro python, and LVGL library.
• Comprehensive information package available at this link

Package includes:

• ESP32 display – 1.28-inch round display
• USB A/C cable

Requires a fixed 5V power supply, no PD trigger
