Arduino Modulino Joystick (ABX00135)

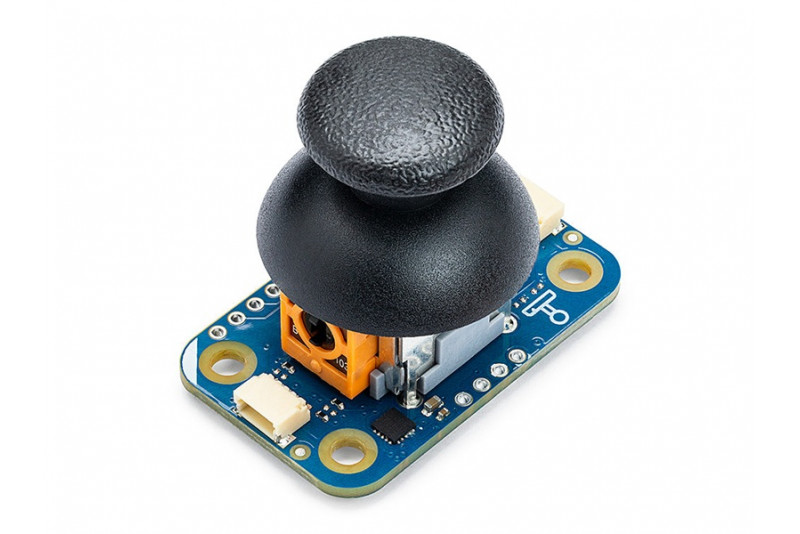

Arduino Modulino® Joystick is an easy-to-use and precise analog control module, ideal for robotics, games, user interfaces, and other interactive projects. The module features a two-axis analog joystick that allows users to smoothly control movement, direction, or selections.

Modulino® Joystick is part of the Modulino® product family, designed to make electronics accessible and quick to deploy. The module is preassembled and connects via a Qwiic cable to Arduino UNO R4 WiFi, UNO Q, Nano, or Nesso N1 boards without complex wiring. Thanks to daisy-chain support, multiple Modulino modules can be connected into a single system. Seamless compatibility with Arduino software, cloud services, and the community accelerates development in both educational and advanced projects.

Features

• Precise analog joystick for movement and direction control
• Plug-and-play Qwiic connection with no soldering required
• Daisy-chain support for chaining multiple Modulino modules
• Preassembled and compact design
• I2C interface with software-configurable address
• Compatible with Arduino UNO R4 WiFi, UNO Q, Nano, and Nesso N1 platforms
• Seamless integration with the Arduino ecosystem and cloud services

Technical specifications

• Model: Modulino® Joystick
• SKU: ABX00135
• Main component: FJP10K-S1B10KD0N (STM32C011 for I2C control)
• Interface: QWIIC (I2C)
• I2C address: 0x2C (software configurable)
• Operating voltage: 3.3 V
• Dimensions: 41 x 25.36 mm
• Weight: 4.4 g

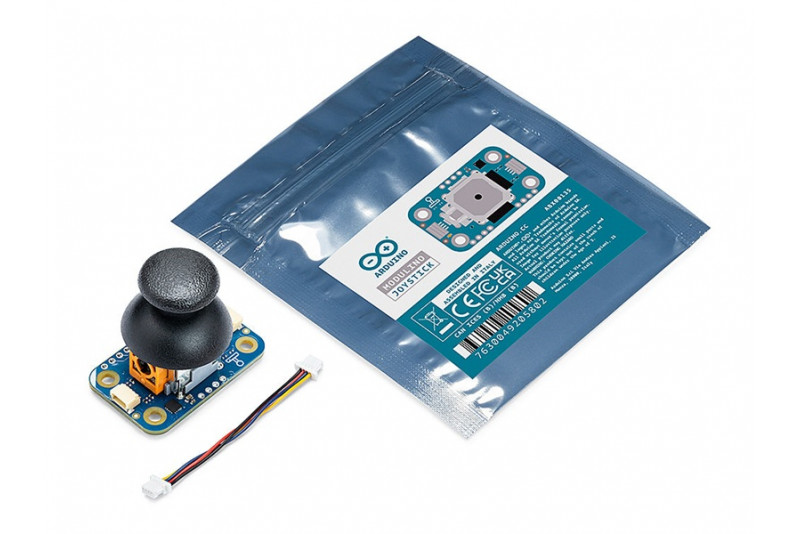

Package includes

• 1 x Arduino Modulino® Joystick module
• 1 x QWIIC cable (5 cm)

Links

Modulino Joystick info page
