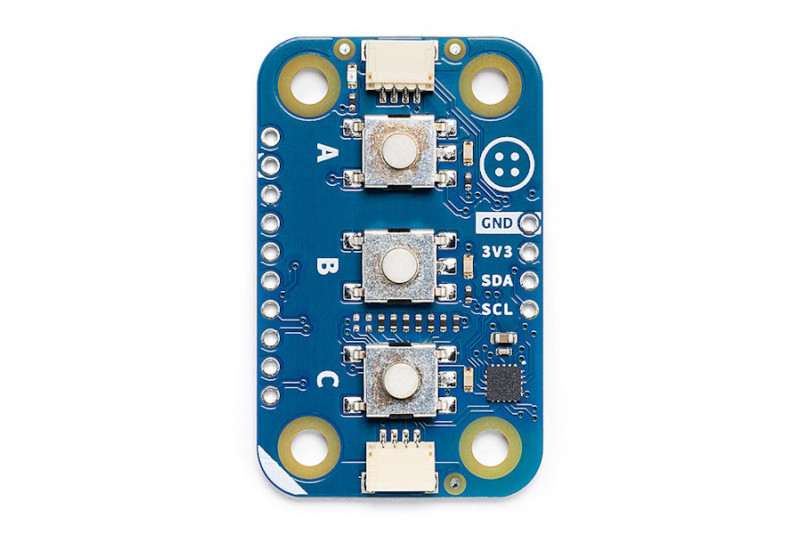

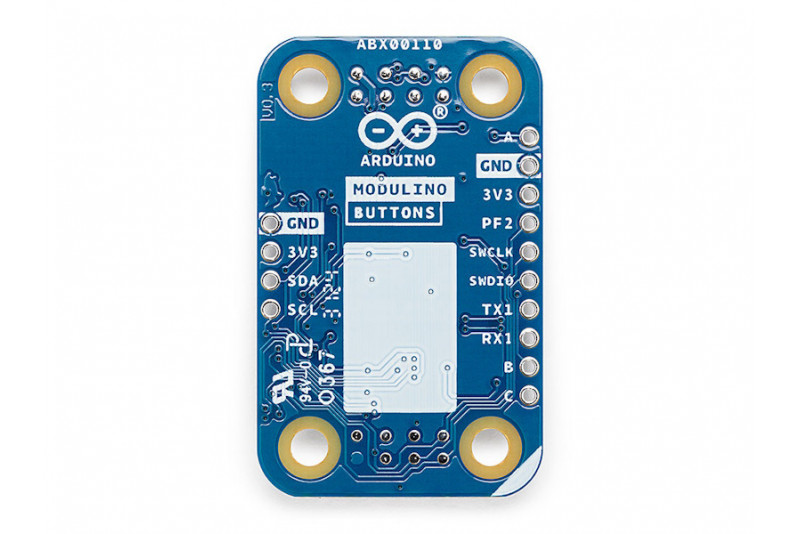

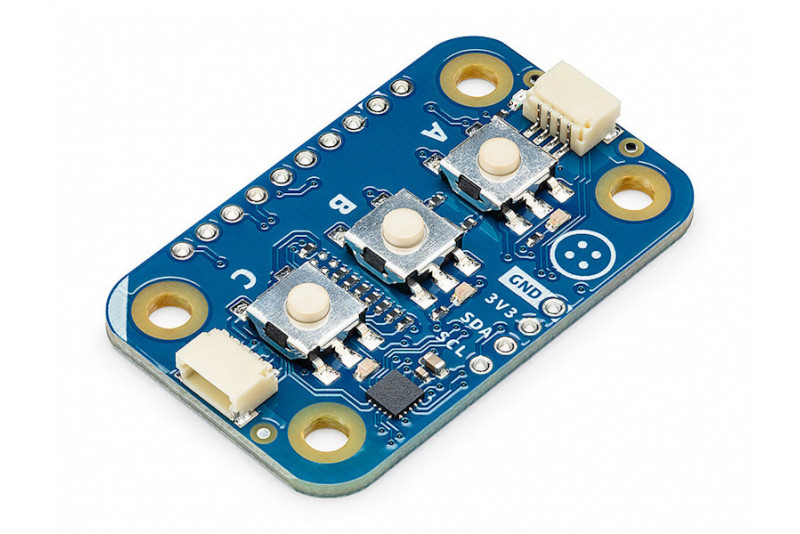

ARDUINO MODULINO BUTTONS MODULE

The Modulino Buttons module offers three buttons to help you easily develop the user interface for your project!

The Arduino Modulino collection includes a range of plug-and-play intelligent components that turn complex electronics into simple, interactive projects – with minimal code and maximum creativity.

Discover a new generation of ready-to-use sensors and actuators that simplify any structure. The Modulino series is designed for hobbyists, educators, and professionals, and they connect easily via Qwiic cables. Thanks to daisy-chaining technology, they operate as a unified system.

Both beginners and experienced developers can implement advanced functionality using preconfigured Arduino Cloud templates and the Modulino library (support for both the Arduino language and MicroPython).

The modules share a unified design, making them easy to swap and reuse across various new ideas. The board’s pin header interface also allows advanced users to customize even further.

Compatible with Arduino Nano, Nano 33 IoT, Nano 33 BLE, Nano 33 BLE Sense, Nano Every, Nano RP2040 Connect, Nano ESP32, Nano Matter, and UNO R4 WiFi boards.

Main benefits

• Plug-and-play connectivity: Quickly and reliably connect Modulino Buttons modules to Arduino UNO R4 WiFi or Nano boards using the Nano Connector Carrier adapter.
• Preconfigured and compact modules: Designed to support demanding edge IoT projects.
• Easy expandability: Add new sensors, actuators, or controllers without redesigning your hardware.
• Seamless integration with the Arduino ecosystem: Leverage Arduino software, cloud tools, and community support to accelerate your development.

Specifications:

• Board name: Modulino Buttons
• Product code (SKU): ABX00110
• Three buttons and three orange LEDs (with STM32C011 for I2C communication)
• I2C address: 0x7C (software-configurable)
• Connector: Qwiic
• Power supply: 3.3 V via Qwiic connector or pin header
• Pins: 3.3 V
• Dimensions: 25.36 mm × 41 mm
• Weight: 4.4 g

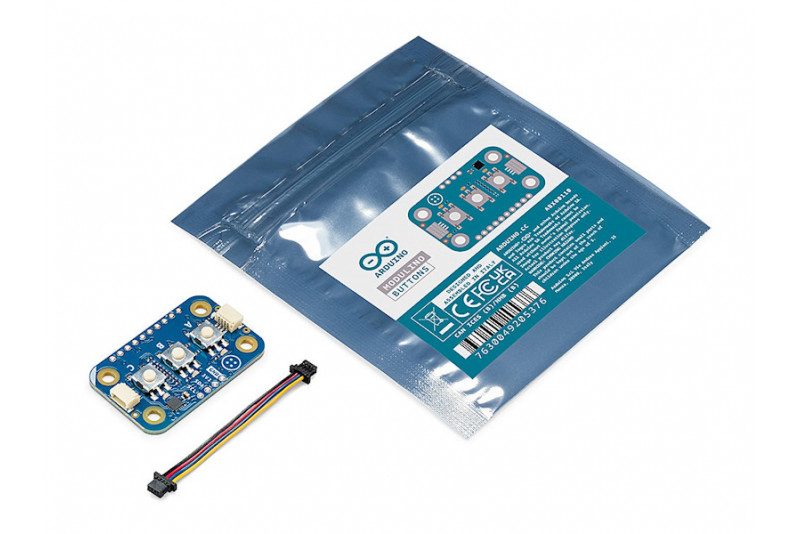

Package includes:

• Modulino Buttons module
• Qwiic cable (5 cm)

Link:

Datasheet (PDF)
