ARDUINO MODULINO PIXELS RGB LED MODUULI

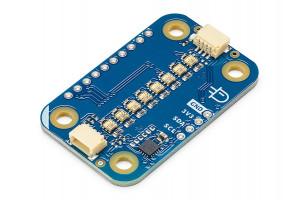

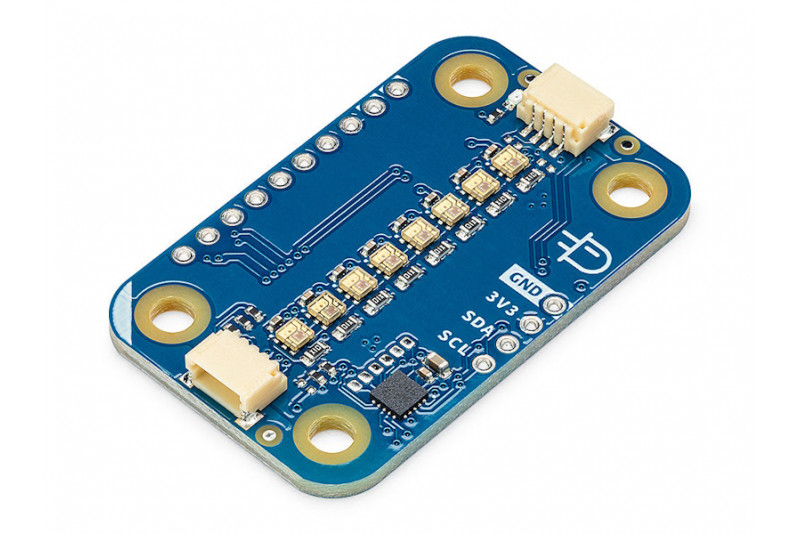

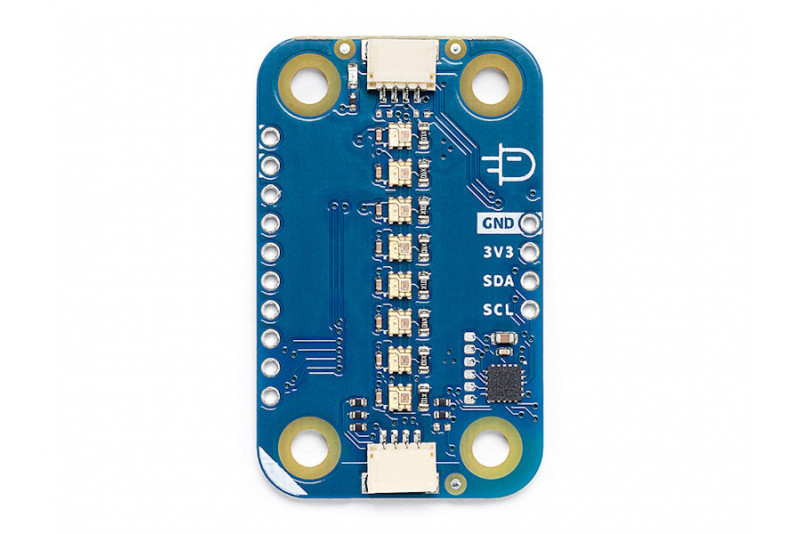

Modulino® Pixels – The module features eight programmable RGB LEDs, making it easy to create visual effects and animations in your projects!

The Arduino Modulino® collection includes a variety of plug-and-play smart components that transform complex electronics into simple, interactive projects—with minimal code and maximum creativity.

Explore a new generation of ready-to-use sensors and actuators that simplify any build. The Modulino® series is designed for makers, educators, and professionals, and integrates effortlessly via Qwiic cables. Thanks to daisy-chain technology, they function as a unified system.

Both beginners and experienced developers can implement advanced features using preconfigured Arduino Cloud templates and the Modulino® library (supporting both Arduino and MicroPython).

The modules share a consistent design that makes swapping and reusing them across new ideas easy. The board’s breakout header also provides customization options for advanced users.

Key Benefits

• Plug-and-play connectivity: Quickly connect Modulino® nodes to Arduino UNO R4 WiFi or Nano boards using the Nano Connector Carrier adapter—fast and reliable.
• Compact and robust modules: Preassembled and ready to support demanding edge‑IoT projects.
• Easy expandability: Add new sensors, actuators, or controllers without redesigning your hardware.
• Seamless Arduino ecosystem integration: Leverage Arduino software, Cloud tools, and community support to accelerate development.

Specifications:

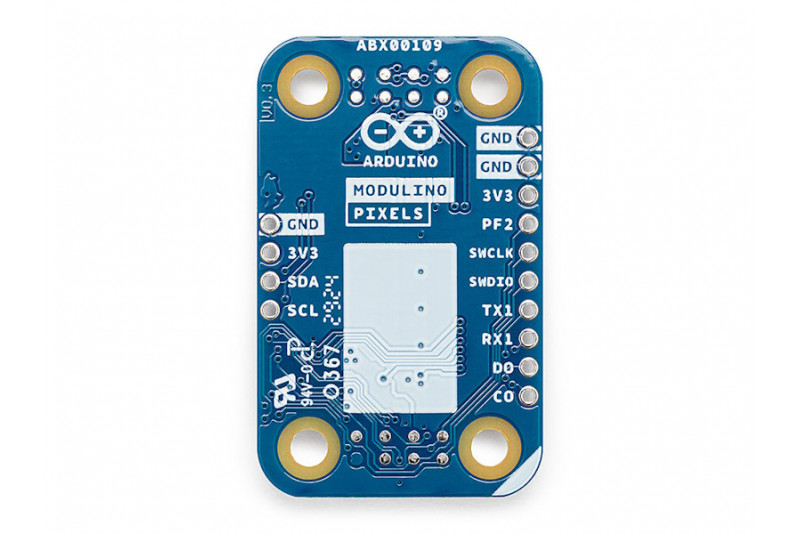

• Board name: Modulino® Pixels
• SKU: ABX00109
• Eight programmable LC8822-2020 RGB LEDs controlled via I2C (STM32C011)
• I2C address: 0x6C (changeable via software)
• Connector: Qwiic
• Power: 3.3 V via Qwiic
• Pins: 3.3 V logic
• Dimensions: 25.36 mm × 41 mm
• Weight: 3.8 g

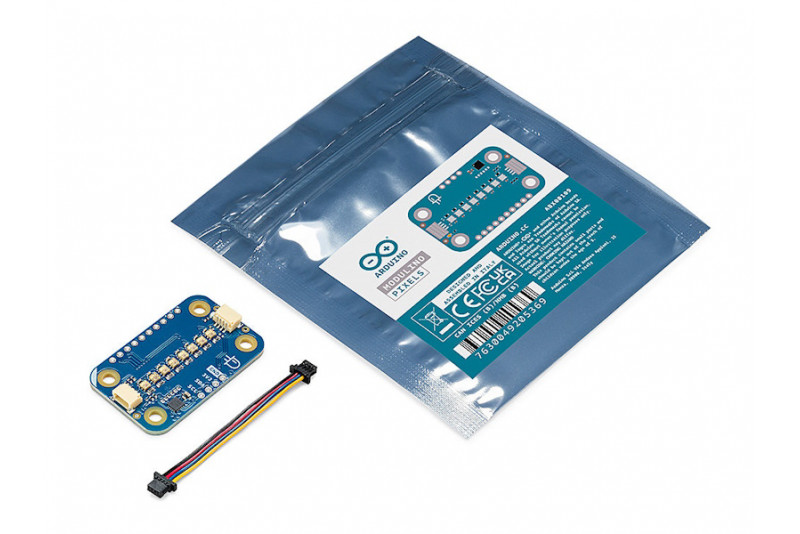

Package includes:

• Modulino® Pixels module
• Qwiic cable (5 cm)

Link:

Datasheet (PDF)
