Kitronik 56109 BBC micro:bit V2 (Board Only) - Retail Pack

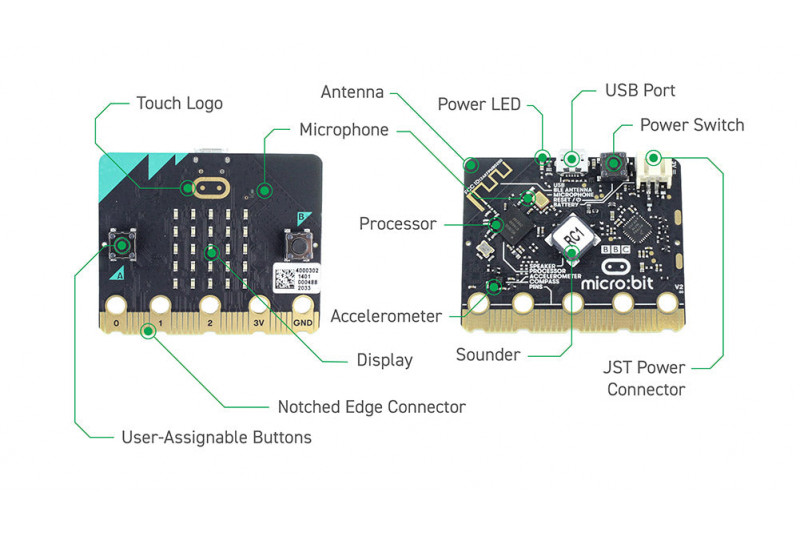

Features

• Dispatched in Retail Packaging.

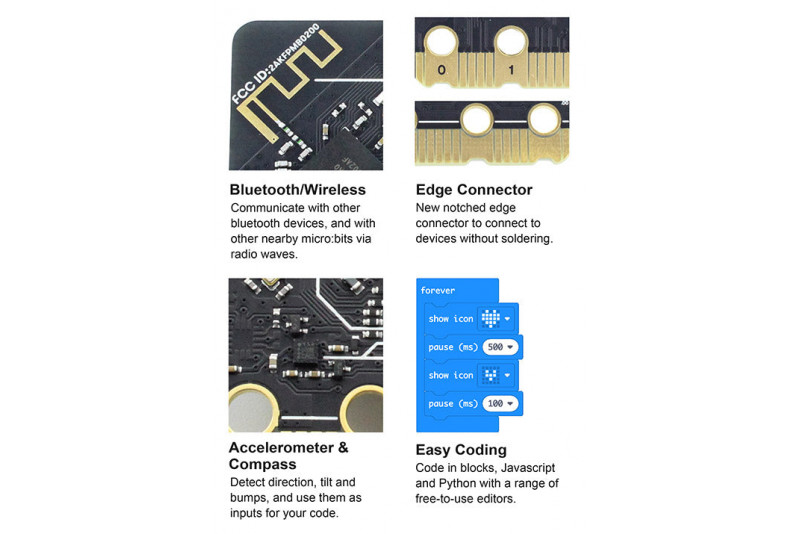

• USB, Radio, serial, and Bluetooth Low energy connectivity.
• A Compass and Accelerometer.
• 2 x user-assignable buttons.

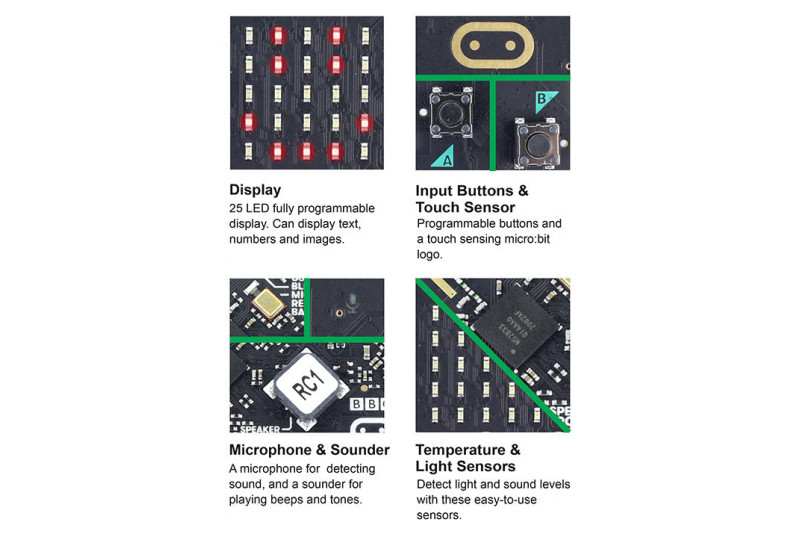

• A fully programmable 25 LED display.
• 25 pin notched edge connector.
• Onboard speaker.
• MEMs Microphone with LED indicator.
• Touch-sensitive logo.
• Light level sensing.
• Temperature sensing.
• Built-in sleep/off mode allowing the board to be powered-down with batteries connected.
• A discrete regulator that can supply up to 200mA of current to external accessories.
• Power status LED and USB data transfer LED.
• Code it with MakeCode; Blocks, Javascript, or Python.

Contents

• 1 x BBC micro:bit V2.21

Dimensions

• PCB Length: 52mm.
• PCB Width: 42mm.
• PCB Height: 11.7mm.

Resources

• micro:bit V1 and V2 features comparison.
• How to convert V1 hex files to V2 Universal hex files.
• MakeCode - For blocks, javascript, and python editors.
• Kitronik University micro:bit resources and guides.
• The micro:bit Foundation website.
