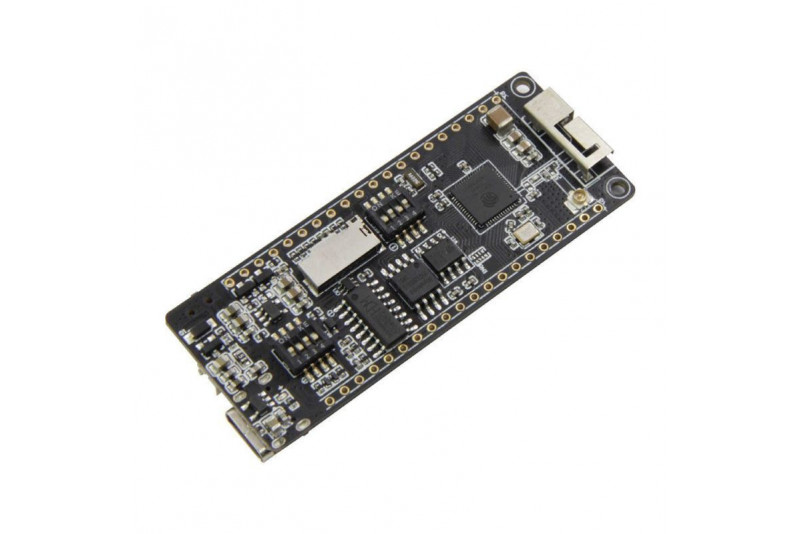

TTGO T-8 ESP32-S2 with 1.14-inch LCD and TF Slot

Features

• Hardware:

  • Chipset: ESPRESSIF-ESP32-S2
  • FLASH: 4MB
  • PSRAM: 8MB
  • SRAM: 320 kB SRAM
  • Button: Power switch, reset, boot, customize, SMD DPI switch
  • External Device: TF Card
  • USB to TTL: CH340C
  • Modular interface: SD card, UART, SPI, I2C, PWM, I2S, ADC
  • On-board clock: 32.768KHz crystal oscillator
  • Working voltage: 2.7V-3.6V
  • Working temperature range: -40℃ ~ +85℃
  • Weight: 9g
  • Size: 65.48*26.02*5mm

• Power Supply:

  • Power supply input: USB 5V/1A
  • Charging current: 500mA
  • Battery input: 3.7-4.2V
  • JST connector: 2Pin 1.25mm
  • USB: Type-C USB

• Wi-Fi:

  • Standard: FCC/CE-RED/IC/TELEC/KCC/SRRC/NCC(esp32 chip)
  • Protocol: 802.11 b/g/n(802.11n，speed up to150Mbps)A-MPDU and A-MSDU polymerization，support 0.4μS Protection interval
  • Frequency range: 2.4GHz~2.5GHz(2400M~2483.5M)
  • Transmit power: 22dBm
  • Communication distance: 300m

• Display:

  • Screen: ST77789 / 1.14 inch

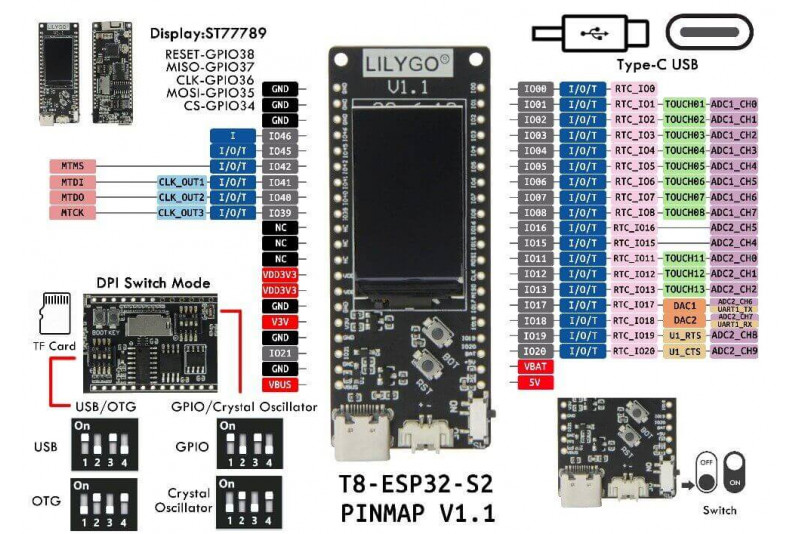

Pinout

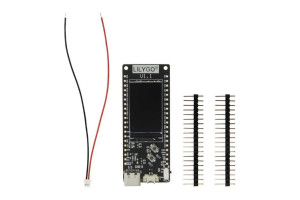

Packing List

• 1 x T8 ESP32-S2 V1.1 board
• 1 x charging cable
• 2 x 20 pin headers
