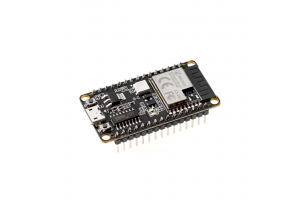

Elecrow DPI18877K - ESP-C3-13-Kit ESP32-C3 2.4GHz WiFi+BLE5.0 Development Board
Equipped with a RISC-V 32-bit single-core processor, ESP-C3-13 is a highly integrated low-power Wi-Fi and Bluetooth system-on-chip (SoC). The ESP-C3-13 development board is a core development board designed with the ESP-C3-13 chip. This development board continues the classic design of the NodeMCU development board, leading all I/O to the pin headers on both sides, and developing Users who can connect peripherals according to their needs. It has industry-leading low power consumption performance and radio frequency performance supports Wi-Fi IEEE802.11b/g/n protocol and BLE 5.0, supports secondary development. It is designed for the Internet of Things (IoT), mobile devices, wearable electronic devices, and various applications such as the smart home.
Pin Number | Name | Description | Pin Number | Name | Description |
1 | ADC | ADC_CHECK(ADC1_CH0) | 16 | 3V3 | Digital 3.3V power output |
2 | IO4 | IO04/ADC1_CH4/FSPIHD/MTMS | 17 | GND | GND |
3 | IO5 | IO05/ADC2_CH0/FSPIWP/MTDI | 18 | TX | TX0/IO21 |
4 | IO6 | IO6/FSPICLK/MTCK | 19 | RX | RX0/IO20 |
5 | IO7 | IO7/FSPID/MTDO | 20 | NC | NC |
6 | IO8 | IO8 | 21 | IO19 | IO19 |
7 | NC | NC | 22 | IO18 | IO18 |
8 | NC | NC | 23 | IO10 | IO10/FSPICSO |
9 | NC | NC | 24 | GND | GND |
10 | GND | GND | 25 | 3V3 | Digital 3.3V power output |
11 | 3V3 | Digital 3.3V power output | 26 | IO3 | IO03/ADC1_CH3 |
12 | EN | High Level: Chip Enable Low Level: Chip Shutdown Note: that the EN Pin cannot be suspended | 27 | IO9 | IO9 |
13 | NC | NC | 28 | IO2 | IO2 / ADC1_CH2 / FSPIQ |
14 | GND | GND | 29 | IO1 | IO1/ADC1_CH1/XTAL_32K_N |
15 | 5V | 5V power input | 30 | IO0 | IO0/ADC1_CH0/XTAL_32K_N |
click for more info | |
Manufacturer | Elecrow |
Manufacturer's model | DPI18877K |
Measures | 20 x 18 x 3.1mm |
Operating temperature | -40...+85°C |
Network connections | BT,Wifi |
