Crowtail MP3 Player 2.0

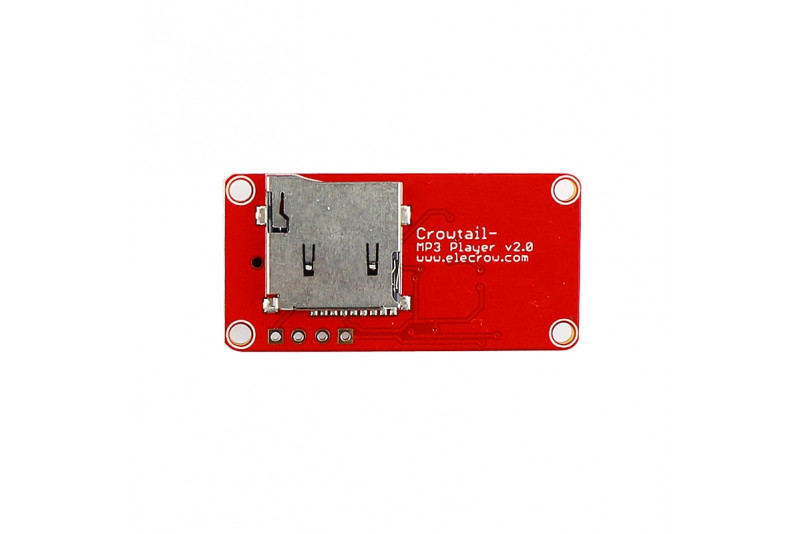

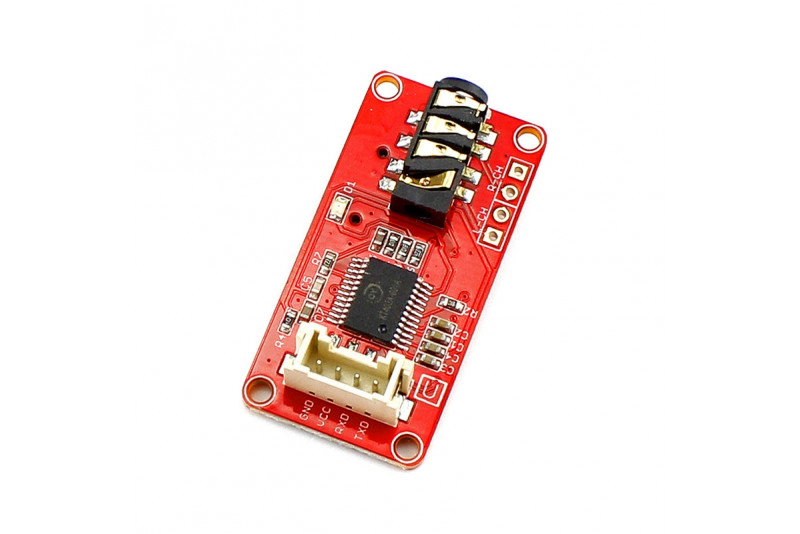

Crowtail- MP3 is a tiny-size and compact audio module. It supports operations including shuffle and play in an order of various audio files such as WAV and WMV ones. With serial communication, you can use all predefined commands or even the combinations of them to play the music. This module also supports general file systems like FAT16 and FAT32. It gets a Crowtail UART interface, a 3.5mm audio jack and a micro-SD slot. With this module, you can get some “voices” for silent applications.

Features

• Crowtail interface
• General operations on audio files
• On-board micro-SD slot and 3.5 mm audio jack
• Support sample rate of 8/11.025/12/16/22.05/24/32/44.1/48(KHz)
• 24-bit DAC output, 90 dB (at Max.) dynamic output range, signal-noise ratio at 85 dB
• MP3, WMV and WAV audio format and FAT16, FAT32 files system supported
• Embed 10 levels of equalization in total
• Dimensions(mm):40.0(L)x20.0(W)x11.8(H)

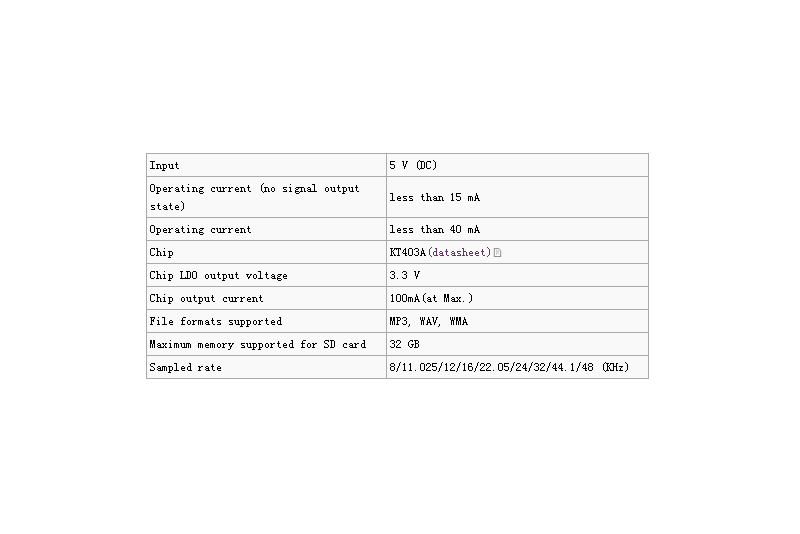

Specifications

Package list

• Crowtail- MP3 Player x1
• Crowtail cable x 1

Wiki & External links

• Wiki link
• KT403
