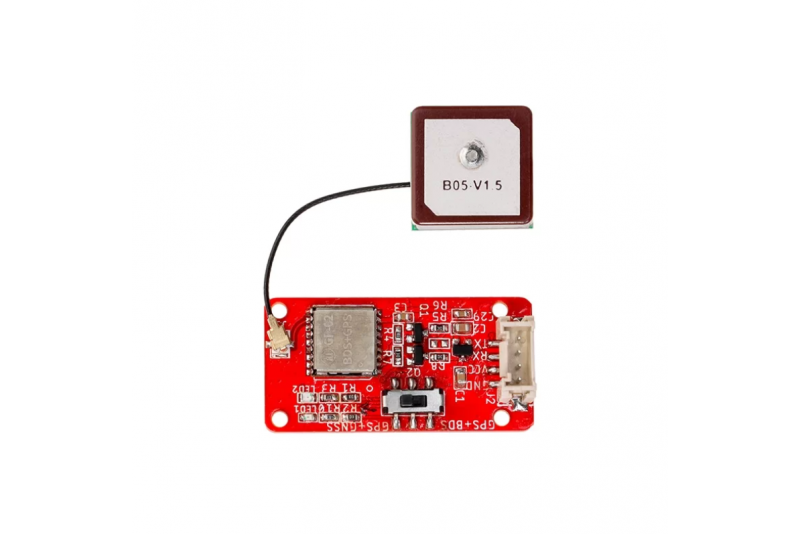

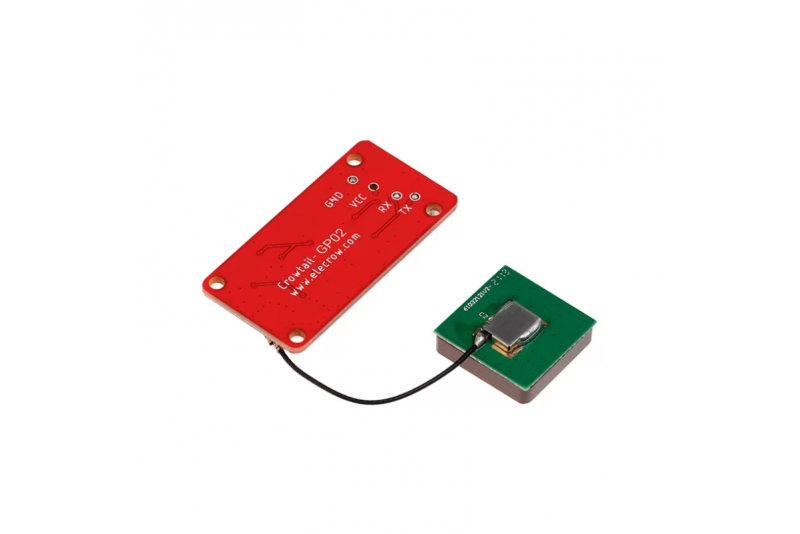

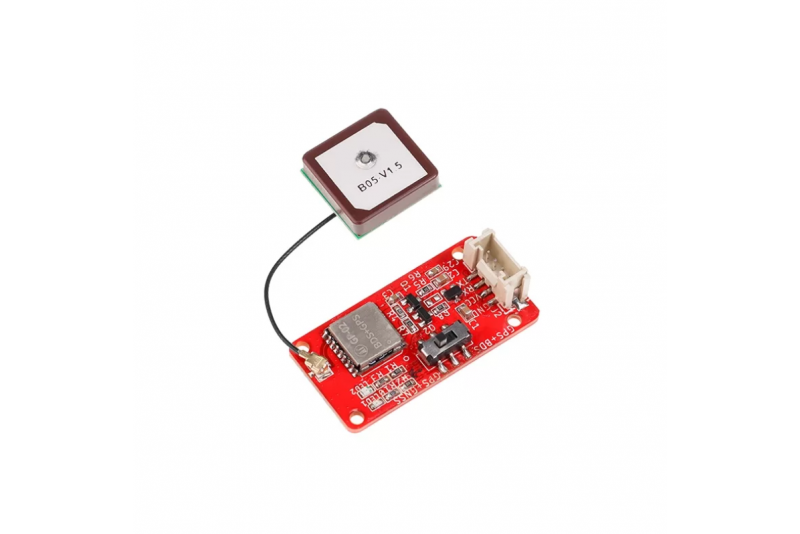

Skip to the end of the images gallery Skip to the beginning of the images gallery Crowtail GPS/BDS/GNSS Modules with GP02

ECT-CRT01140G

1 Item

In stock

Manufacturer homepage

14,75 €

Elecrow CRT01140G - Crowtail GPS/BDS/GNSS Modules with GP02 - has a positioning accuracy of about 2 meters and can provide up to 5 Hz, <0.1 m/s accurate and real-time positioning speed.

The Crowtail - GP02 module is a cost-effective and field programmable gadget. The high-performance BDS/GPS/ GLONASS multi-mode satellite navigation receiver SOC module, integrates RF front-end, digital baseband processor, 32-bit RISC CPU, power management and active antenna detection and protection functions. Its positioning accuracy is about 2m and can provide a maximum 5Hz, <0.1m/s accurate and real-time positioning rate. It supports a variety of satellite navigation systems, including China's Beidou satellite navigation system BDS, the United States' GPS, and Russia's GLONASS, and can realize multi system joint positioning.

Feature

  • Field programmable
  • Outdoor positioning
  • 32-bit RISC MCU
  • Supports BDS, GPS, and GLONASS systems
  • Low power consumption
  • High sensitivity and accuracy
  • Can switch between GPS+BDS and GPS+GNSS modes

Specification

  • Operating voltage: DC 2.7V ~ 3.6V
  • Default baud rate: 9600
  • Interface type: UART
  • Navigation sensitivity: -160dBm
  • Cold start capture sensitivity: -148dBm
  • Tracking sensitivity: -162dBm
  • Positioning accuracy: <2m (1σ)
  • BDS/GPS dual mode continuous operation power consumption: 23mA
  • Size(mm): 40.0(L)x20.0(W)x9.7(H)
  • Time to first start: Cold start: 32s; Warm start: <1s; Hot start: <1s

Packing List

  • 1x Crowtail GP02
  • 1x Crowtail Cable

Links

Video

click for more info
ManufacturerElecrow
Manufacturer's modelCRT01140G
