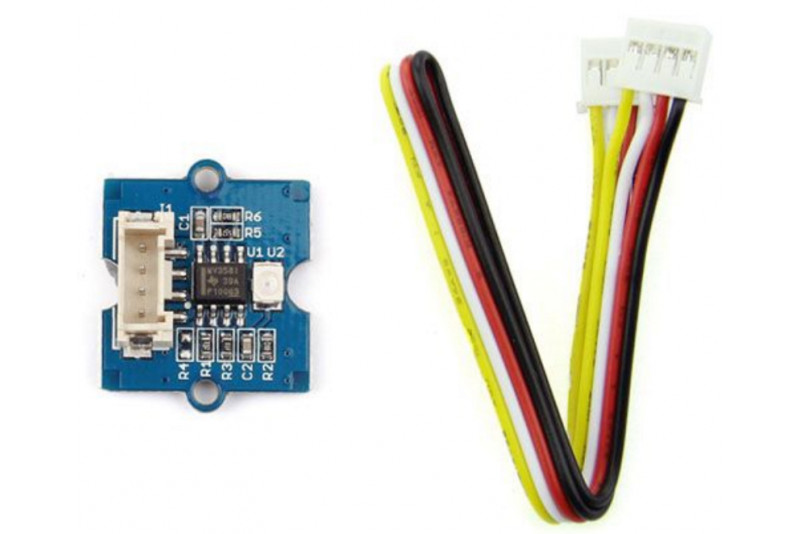

Grove UV Sensor

Wide spectral range from 200nm to 400nm Stable and good sensitivity Compact design Low power consumption Grove compatible interface.

PRODUCT DETAILS

The Grove – UV Sensor is used for detecting the intensity of incident ultraviolet(UV) radiation. This form of electromagnetic radiation has shorter wavelengths than visible radiation. It is based on sensor GUVA-S12SD. It has a wide spectral range of 200nm-400nm. The module will output an electrical signal which is varied with the change of the UV intensity. UV sensors are used for determining exposure to ultraviolet radiation in the laboratory or environmental settings.

Features

• High stability

• Good Sensitivity

• Low power consumption

• Schottky type photodiode sensor

• Wide response range

• Grove Interface'

Part List

Links

• Wiki Grove - UV Sensor
• Grove - UV Sensor v1.1 PCB(current version) in PDF format
• Grove - UV Sensor v1.1 schematics(current version) in PDF format
• Grove - UV Sensor v1.1 Sensor Datasheets(current version)
• US EPA Suggestions About UV Radiation
