New Cable Joint, IP68, 3 Position, 10.5 mm View larger

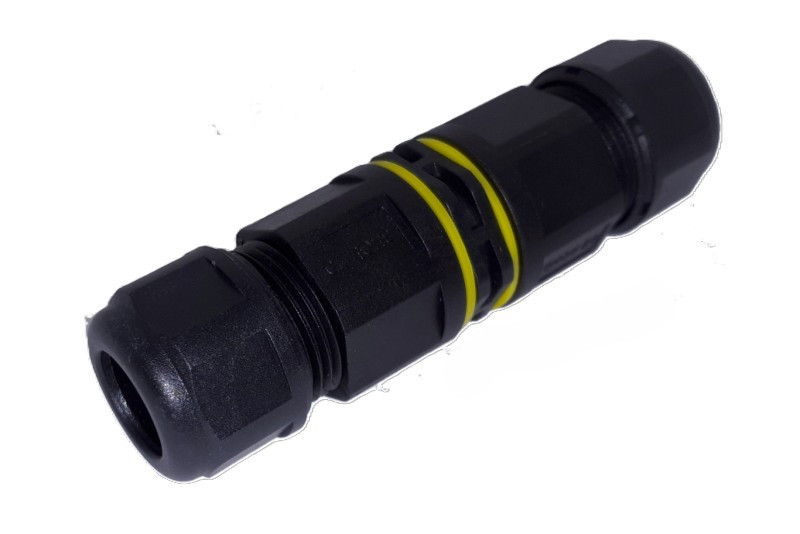

Cable Joint, IP68, 3 Position, 10.5 mm

20122803

112 Items

In stock

Manufacturer homepage

7,90 €

SC‑L‑PG11‑03‑GN field‑installable circular cable joiner from Amphenol LTW (FICX series), designed for quick, reliable cable interconnection with IP68 sealing and screw‑thread locking

  • Type: Cable connector / standard round connector
  • Number of connections: 3
  • Rated current: 20 A
  • Voltage: 450 VAC
  • Cable outer diameter: Suitable for cables from 8.6 to 10.5 mm
  • Connection type: Screw terminals
  • Connection type: PG11 screw thread
  • IP rating: IP68 (dust and water resistant)
  • Operating temperature: –40 °C to +105 °C
  • Housing material: Polyamide (PA66 / nylon)
  • Contact coating: Nickel-plated brass
  • Color: Black / green
  • Weight: ~46 g / 2 oz

SC-L-PG11-03-GN

Download (724.38k)
