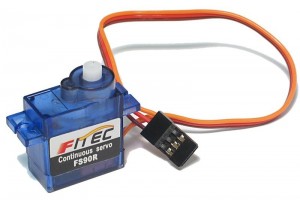

MICRO CONTINUOUS ROTATION ANALOG SERVO 6VDC 15Ncm

The larger the deviation of the PWM control from the stationary point (1.5 ms), the faster the clockwise or counter-clockwise rotation.

• speed without load
  • 0,07sec/60ast @6VDC (= 130RPM)
  • 0,09sec / 60ast @4,8VDC (= 100RPM)
• current consumption
  • free 200mA @6VDC
  • when clamped 600mA @6VDC
• torque 1,5kg per cm (= 15Ncm)
• adjustment trimmer at the bottom to fine tune the positioning point of the steering (default 1,5 ms)
• five different adapter pieces included (see additional picture)
• wiring:
  • 1. brown = GND
  • 2. red = VCC
  • 3. orange = servo control signal (PWM)
