Sale! STEPPER MOTOR NEMA08 3.9V 0.6A 1.8deg View larger

STEPPER MOTOR NEMA08 3.9V 0.6A 1.8deg

ASMOT 20SHD0001-20

8 Items

In stock

Manufacturer homepage

23,04 €

-20%

28,81 €

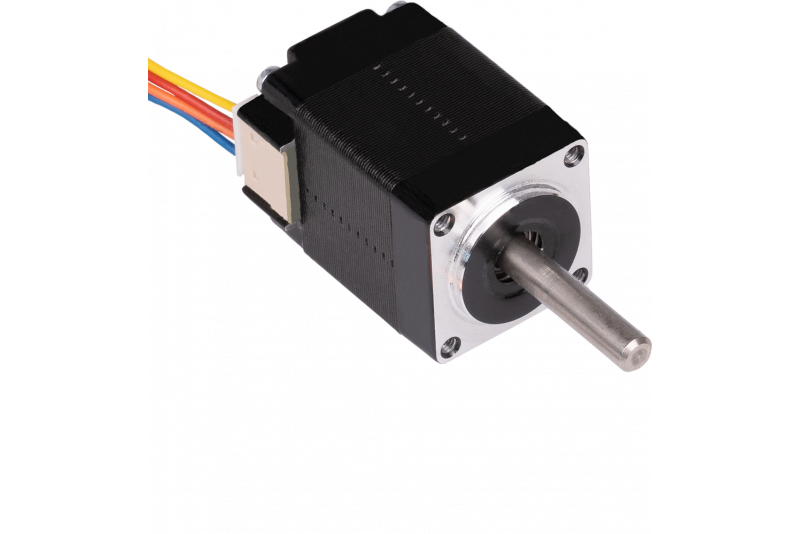

Joy-IT NEMA08-01 - 20SHD0001-20 is a bipolar stepper motor in very small NEMA08 format. Shaft Ø 4 x 18.5 mm. Body 20 x 20 x 30 mm.

NEMA 8 series are very small high torque stepper motors that can reach up to 3000 rpm.

These motors are used in the model making and maker scene as well as in the industrial environment (e. g. positioning of optics, dosing pumps, interlocks, etc.).

Specifications

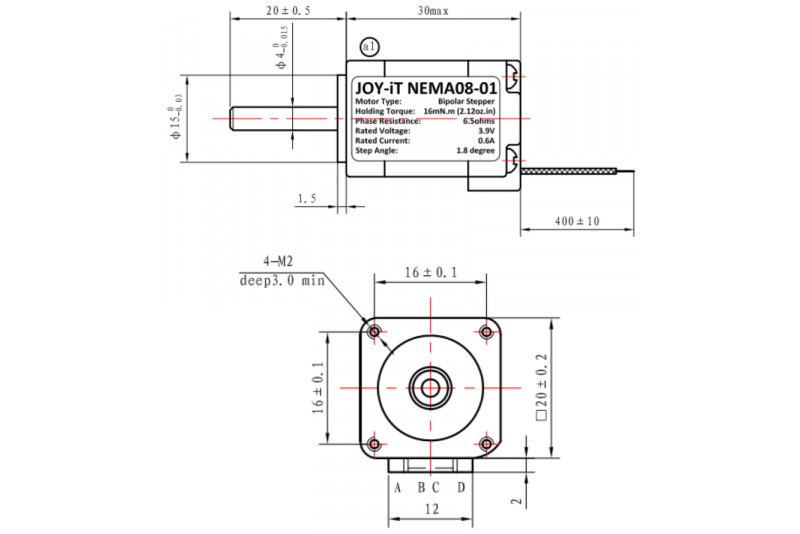

  • Shaft dimensions: Ø 4 x 18.5 mm
  • Connection: 6 pin JST socket
  • Cable Length: 400 mm
  • Holding torque: 16 mNm
  • Rated voltage: 3.9 V
  • Rated current: 0.6 A
  • Step angle: 1.8 ° ±5 %
  • Number of Phases: 2
  • Phase resistance: 6.5 Ω
  • Phase inductivity: 1.7 mH
  • Isolation resistance: 100 MΩ min. @500V DC
  • Isolation class: B (130°C)
  • Rotational inertia: 2 g·cm²
  • Detent torque: 18 mNm
  • Permitted operating temperature: -10 to 50 °C
  • Dimensions: 20 x 22 x 30 mm
  • Weight: 60 g
  • Items Shipped: NEMA 8 stepper motor, connection cable
  • EAN: 4250236821665
EAN4250236821665
click for more info
ManufacturerJoy-IT
Manufacturer's model20SHD0001-20
Distributors codeNEMA08-01
Measures20 x 22 x 30 mm
Weight60g
SizeNEMA08
