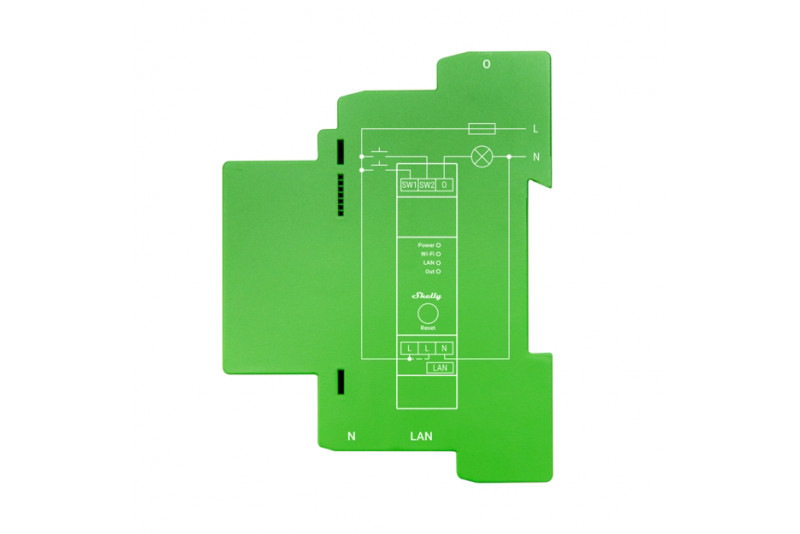

Shelly Pro Dimmer 2PM

Shelly Pro Dimmer 2 PM is a dual-channel Wi-Fi relay with energy consumption monitoring, supporting a maximum load of 10 A. The relay is installed directly on a DIN rail, and it can be used to control dimmable lights and transformers. Features adjustable dimming time and minimum & maximum brightness. Shelly Pro Dimmer 2PM can operate locally in a Wi-Fi network or be connected to a cloud service. By connecting Shelly Pro Dimmer 2PM to the internet via Wi-Fi, it allows remote device management from anywhere. Through the built-in web interface, you can monitor and control the device as well as adjust its settings.

Note! You will need an electrician's assistance for fixed electrical network installations.

Features

• LAN, Wi-Fi, and Bluetooth connections
• 2 channels
• Adjustable dimming time
• Adjustable minimum & maximum brightness
• No need for a separate control unit
• LED light indicator
• DIN rail installation
• Fireproof casing (V-0) with internal overheating protection
• Amazon Alexa, Google Assistant support
• Shelly Cloud application - Android and iOS support
• Smartthings support

Specifications

• Model: Shelly Pro Dimmer 2PM
• Nominal voltage: AC: 110-240 V 50/60 Hz
• Maximum load: 10 A
• Power consumption: < 2 W
• Number of channels: 1
• Operating temperature: -20ºC ... +40ºC
• Power consumption monitoring: yes
• Overheating protection: yes
• Overload protection: yes
• Works without neutral wire: no
• MQTT and WSS support
• Bluetooth: yes
• Wireless standard: Wifi 802.11b/g/n, 2.4 GHz
• Wi-Fi frequency: 2412 - 2484 MHz
• Wi-Fi transmission power: <20 dBm
• Wi-Fi radio signal strength: 1 mW
• Wi-Fi range: 50 m outdoors, 30 m indoors
• Material: plastic
• Dimensions: 94 x 19 x 69 mm
